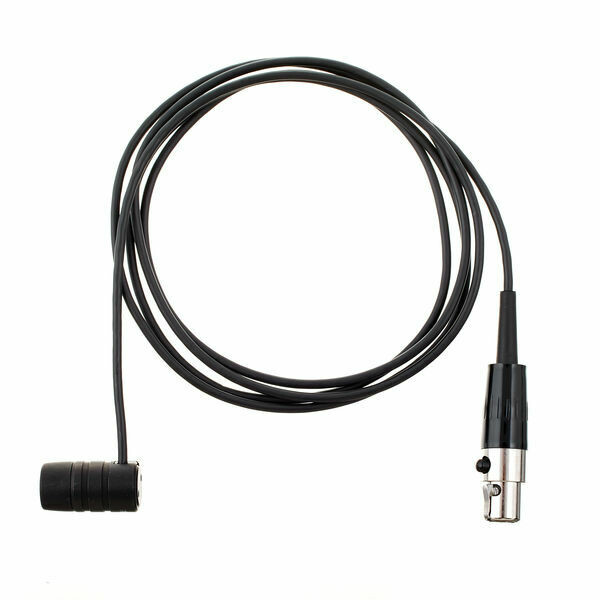

Shure WL183 Overview
The Shure WL183 is a miniature omnidirectional microphone designed for general recording and sound reinforcement application. The omnidirectional pattern provides a generous pick up at the perimeter of the capsule, enhancing ambient audio pick up while minimizing handling noise. The WL183 features a wide sensitivity and frequency response, reproducing speech with great detail and clarity. The 4 foot (1.2 meter) cable cable terminates to a 4-pin TA4-female connector, compatible with Shure wireless transmitters and power supplies.
Miniature Profile
The miniature profile of the WL183 capsule allows the microphone to be easily concealed during performances or video shoots.
Omnidirectional Pattern
The omnidirectional polar pattern provides a 360 degree pick up range, enabling a generous signal pick up without added noise.
TA4 Female Connection
The 4 foot (1.2 meter) cable terminates to a TA4 female connection, compatible with Shure wireless transmitters and power supply modules.
Shure WL183 Specs
Microphone
| Form Factor | Lavalier |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Pad | None |
| High-Pass Filter | None |
| Indicators | None |
| Windscreen | Foam |
Performance
| Frequency Range | 50 Hz to 17 kHz |
| Maximum SPL | 125 dB SPL |
| Impedance | 1800 Ohms |
| Sensitivity | -40 dBV/Pa |
| Dynamic Range | 102.5 dB |
| Equivalent Noise Level | 22.5 dB SPL A-Weighted |
Connectivity
| Output Connectors | 1 x TA4/Mini XLR 4-Pin Female |
| Cable Length | 4' / 1.22 m |
Power
| Operating Voltage | 1.5 to 10 V |
Physical
| Color | Black |
| Mounting | Tie Tac Clip |
Packaging Info
| Package Weight | 0.43 lb |
| Box Dimensions (LxWxH) | 6.75 x 4.55 x 3.45" |
UPC: 042406055307
