Sennheiser E908 D Overview

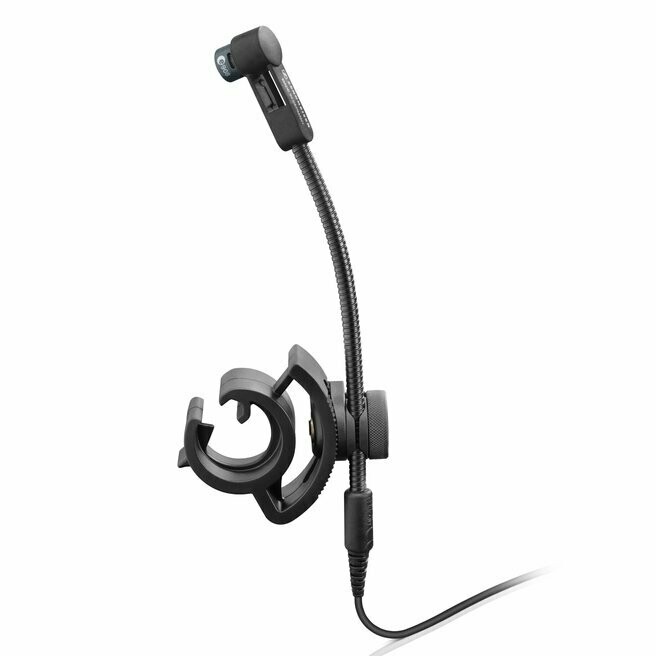

The Sennheiser e 908 D is a miniature condenser instrument microphone specifically optimized for use with drums and percussion. The cardioid capsule captures audio in vivid detail and clarity while exhibiting excellent rejection of off-axis noise and feedback. The e 908 D handles high sound pressure levels without peak distortion, enabling close proximity placement without noise.
The miniature capsule remains out of sight during performances and the flexible gooseneck allows for easy positioning. The mounting clamp features dampening materials to eliminate extraneous vibration, impact, and handling noise. The e 908 D features a locking miniature 3.5mm connector for use with EW series beltpack transmitters; however, the MZA 900 P cylindrical preamplifier is included and terminates to a standard 3-pin XLR connection, for direct connection to PA systems, consoles, and recording devices.
Wired or Wireless Operation
Low-Frequency Roll-Off
12 dB Pad Switch
Cardioid Polar Pattern
Gooseneck Mount
Clamp Dampening
The sturdy clamp features dampening materials for reducing vibration and handling noise.
Sennheiser E908 D Specs
| Form Factor | Instrument Mount |
| Sound Field | Mono |
| Capsule | Condenser |
| Polar Pattern | Cardioid |
| Orientation | End Address |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam (Included) |
| Frequency Range | 40 Hz to 20 kHz |
| Impedance | 100 Ohms |
| Load Impedance | 2 Kilohms |
| Sensitivity | 4 mV/Pa |
| Output Level | 30 dB |
| Output Connectors (Analog) | 1 x 1/8" / 3.5 mm TRS Male (Locking, on Attached Cable) |
| Cable Length | 7.22' / 2.2 m |
| Cable Diameter | 0.003" / 0.08 mm |
| Operating Voltage | 12 to 48 V (Phantom Power) |
| Operating Current Consumption | 3 mA (Phantom Power) |
| Color | Black |
| Mounting | Instrument Clamp (Included) |
| Dimensions | ø: 1.85 x L: 7.6" / ø: 47 x L: 193 mm |
| Weight | 4.94 oz / 140 g |
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 10.5 x 5 x 3" |
