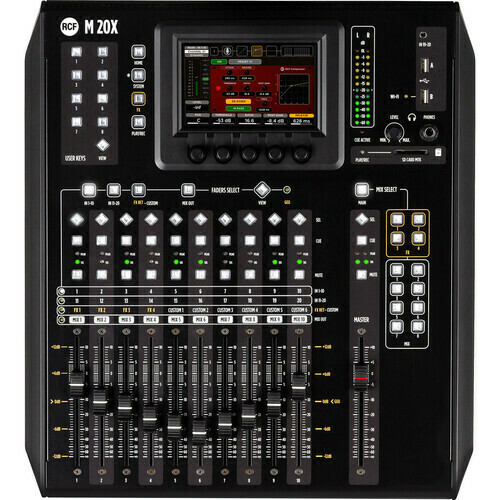

RCF M 20X Desktop 20x14 Digital Mixer with USB #RCM20X MFR #M20X

USD 2,420.00 USD 2,420.00

Add to cart
Buy now
Add to wishlist
Terms and Conditions
Contact Us

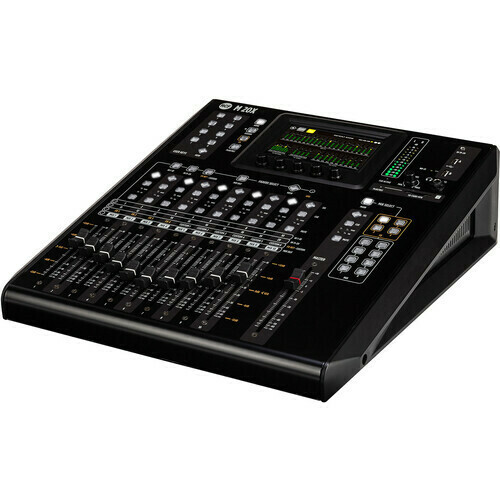

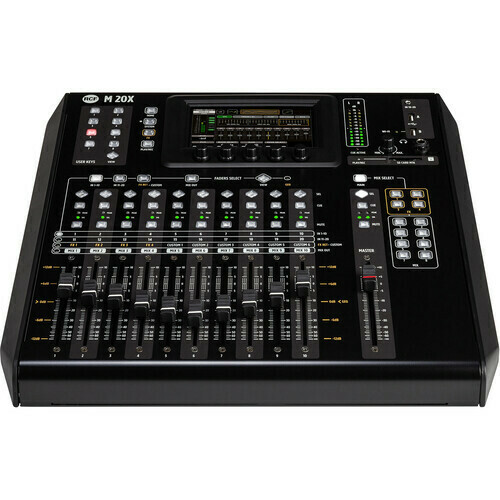

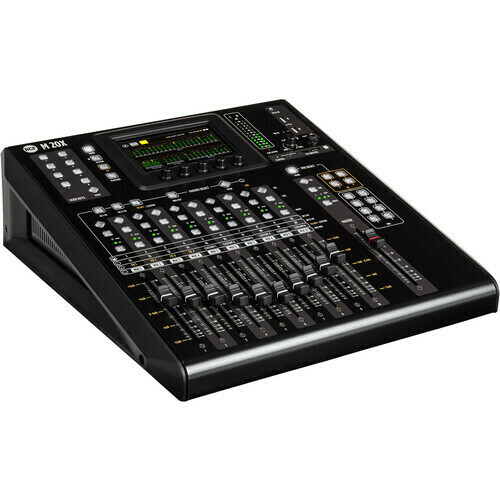

M 20X is a fully recallable mixer, with 16 remote controlled preamps and 11 motorized faders. Despite its dimensions, the M 20X packs a whole suite of capabilities, such as high-profile preamplifiers, top of class DSP with studio-quality processing, WiFi remote control and a comprehensive set of multitrack recording and playback functions. The mixer offers a total of 20 analog inputs and 14 output channels, between the balanced analog outputs and the AES/EBU digital output.
Desktop Digital Mixer
Every function is just one or two steps away, with intuitive navigation and hi-contrast interface in all menus. You have complete control of your live mix, all within one of the most compact systems you can find on the market.
M20 Mixremote App
Complete remote control of all M 20 models is available with M20 MixRemote, a dedicated App developed for both iOS and Android. There are several options to connect with the Digital Mixer:

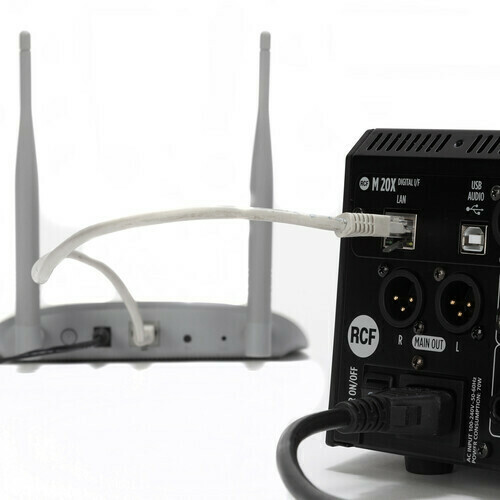

Wireless, via an external WiFi Access Point connected to the LAN
USB tethering to an Android tablet
Wired to an iOS or Android tablet (via LAN adapter)
WiFi Dongle, two clients maximum
Enhanced FX Engines
Four buses are dedicated to internal FX engines, arranged as two high-quality digital-reverbs, a programmable delay and a fourth FX which can be configured as delay or modulation. All FX engines offer multiple algorithms to match the specific needs of a show. It is possible to reserve one reverb for some inputs and use the second reverb as a general-purpose FX for other sources.

Effect List
REVERB Hall, Plate, Room, Ambience
DELAY Stereo, Modern, Vintage, Dual, Early Reflections
MODULATION Chorus, Flanger, Tremolo
Record And Playback

The M 20X offers several options for recording and playback:
Internal SD Multitrack Record/Playback
All 20 inputs can be recorded in multitrack WAV format on the local SD card, and played back as channel inputs, no computer required.
Multichannel USB 2.0 Audio Interface

A 24-track, 24-bit, 48-kHz low-latency USB audio interface is available and allows access to all inputs and several internal signal nodes. Extensive routing options allow both offline soundcheck and host-based effects processing.

USB Drive Stereo Player/Recorder

A flexible stereo file player can access USB mass storage devices (up to four different drives), with arbitrary sample rate, in MP3, WAV, and AIFF formats.DESIGNED FOR PROFESSIONALS

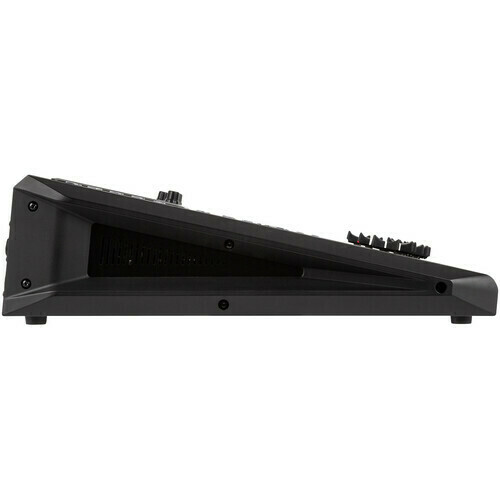

Touring grade metal construction and reliable electronics, for the best durability over time. High contrast graphics and knobs, premium quality connectors and long-lasting controls increase both functionality and durability over time. The universal voltage power supply makes it perfect for worldwide use, providing the ability to travel safely with your mixer, everywhere.

SPEED UP YOUR WORKFLOW

The M 20X user interface has been designed so that every parameter is reachable within a few actions.

USER KEYS

A set of 8 User Keys with extensive programming options is always available, and offer immediate control of scene selection, play/record transport, tap tempo, user interface shortcuts.


FADER LAYERS AND FADER VIEW

4 layers of fader assignments allow immediate access to input channels 1-10 and 11-20, to FX returns and outputs. The FADER VIEW button shows all fader details on a single screen view.


MOTORIZED FADERS

11 x 100-mm motorized faders
allow precise mix control
with immediate visual feedback.
Special care has been taken
to minimize movement noise.


CUE MONITOR

The unit can be monitored at any time
via the CUE bus,
which features a real-time
analyzer (RTA) and output
via headphones.


CAPACITIVE TOUCH SCREEN

A highly responsive 5-inch TFT touchscreen offers intuitive navigation of all the available features and can be optionally paired with an external tablet for extended control.

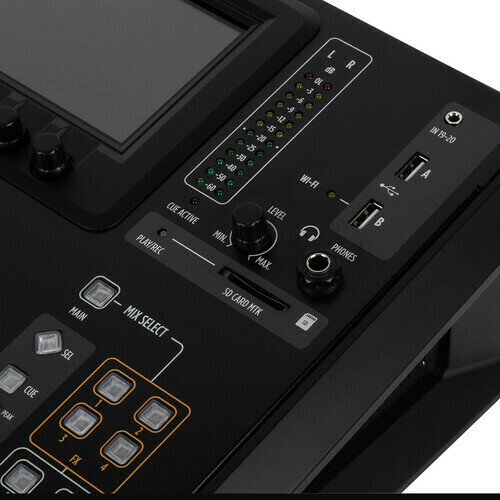

USB HOST PORTS

Two USB host ports on the top panel are available for WiFi dongles, USB-MIDI devices, and USB mass storage devices that can be used for stereo audio record/ playback, system backups, and firmware updates.

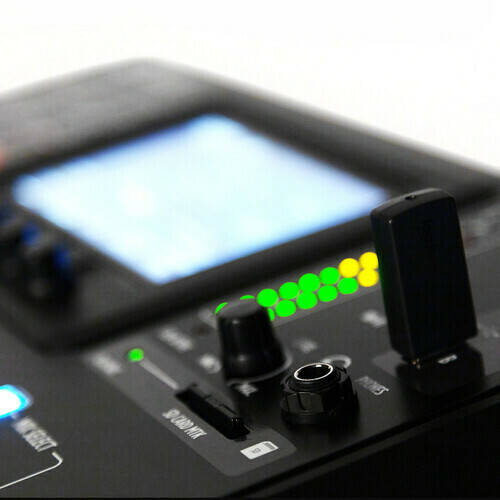

SD CARD MULTITRACK SECTION

An integrated SD card multitrack engine offers a maximum of 20 simultaneous tracks at 24-bit, 48 kHz, with extensive routing options.


14 BUSES

The MIX SELECT buttons assign one of the 14 mixes to the physical faders; choosing among four effect buses, 8 MIX buses, and the MAIN mix bus.
The MASTER fader is always associated with the output level of the selected bus.
