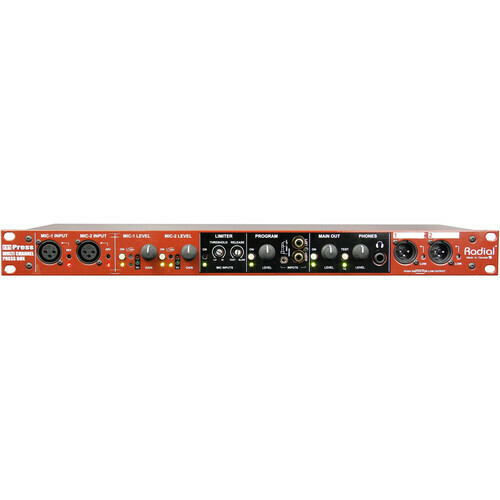

Radial Engineering mPress Overview

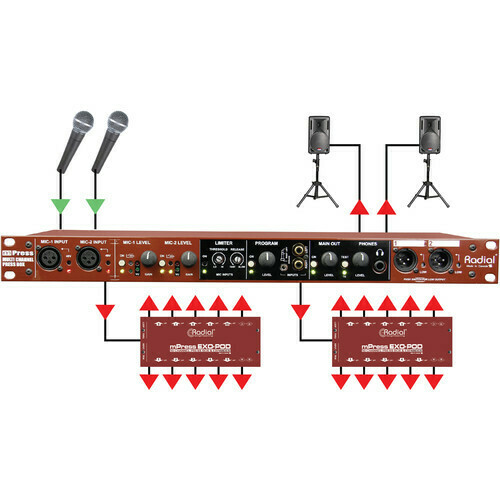

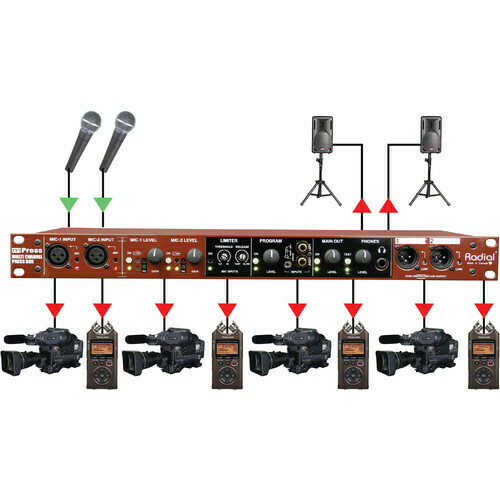

The Radial mPress is a modular press box that can be expanded as needed to feed a community-sized press gallery or distribute audio for an international event. Eight balanced mic outputs may be used to supply feeds to a small press gathering. In order to eliminate hum and buzz caused by ground loops, all outputs are transformer isolated.
Key Features
- Completely analog, no digital trickery
- Active drive with transformer isolation to eliminate noise
Radial Engineering MPress Specs
General
| Type | Audio distribution amplifier |
| Width | 19 in |
| Depth | 7.2 in |
| Height | 1.8 in |
| Weight | 6.24 lbs |
Studio & Production Equipment
| Features | Phantom power |
Terminals

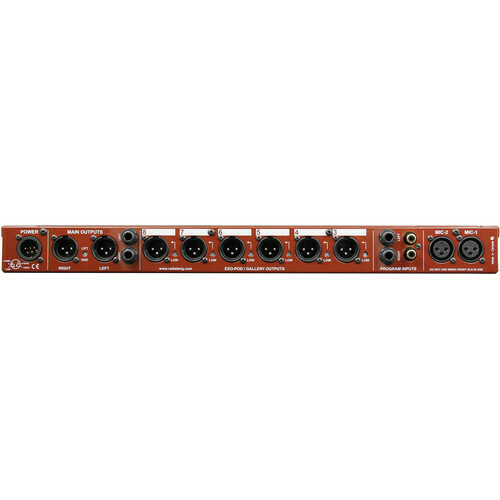

| Terminals | (4) x microphone - XLR (1) x headphones - phone stereo 6.3 mm (1) x audio line-in - mini-phone 3.5 mm (2) x audio line-in - RCA x 2 (2) x balanced audio input - phone stereo 6.3 mm x 2 (10) x balanced audio output - XLR |
Manufacturer Warranty
| Warranty | 3 years |
Packaging Info
| Package Weight | 8.8 lb |
| Box Dimensions (LxWxH) | 21.9 x 10.4 x 4.4" |
UPC: 676101044214
