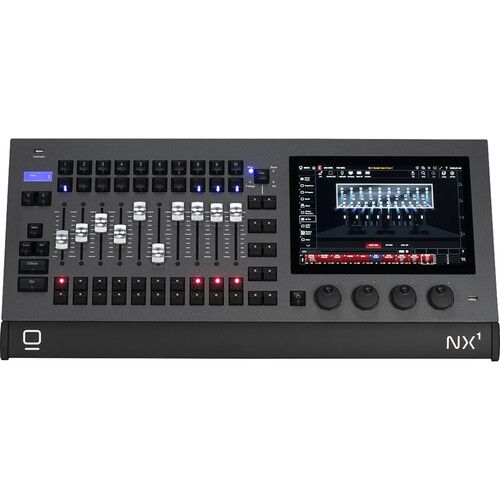

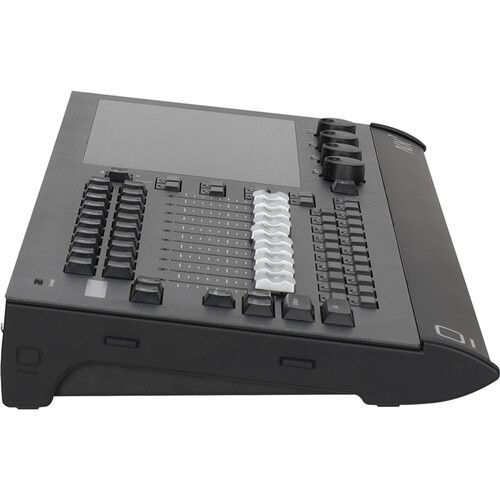

Lighting professionals in search of a compact and portable lighting controller will be impressed with the Obsidian NX1, a professional and comprehensive feature-packed control surface that includes the ONYX Essential license, which provides control of up to 8 universes. As a member of the innovative ONYX platform from Obsidian Control Systems, the NX1 is feature rich and unrestricted in its capabilities. The NX1 includes a high-brightness 10.1" HD multi-touch screen, 4 assignable parameter encoders, 10 full motorized playbacks with four freely assignable buttons plus and extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design.
- Portable and compact fully featured lighting console
- 10.1” Full HD multi touch screen, 1x external touch display
- ONYX Essential License (8 Universes)
- Fully integrated industrial processing
- 10 motorized playbacks, 10 playback / function hybrids, 4 encoders, Master Go section
- Powerful Intel processor
- High-speed NVMe SSD drive
- 8GB of DDR4 RAM
- Fast boot times, instant operation, and the ability to process 8 Universes
- Four DMX ports
- Gigabit network port for up to 8 Universes of Art-Net, sACN plus the ONYX X-Net protocol

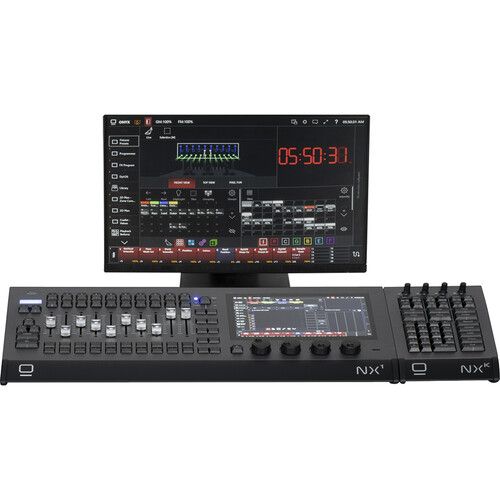

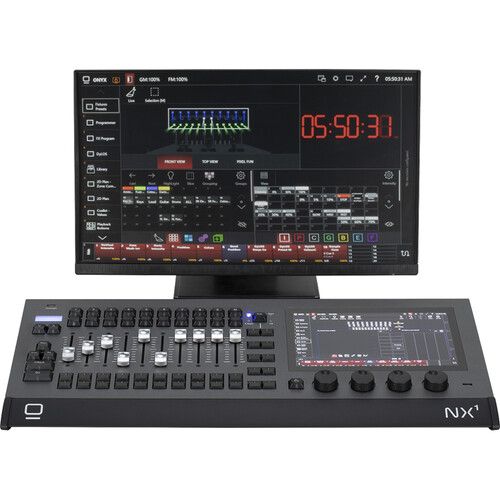

- Support for one additional touch monitor for even more direct access at any time

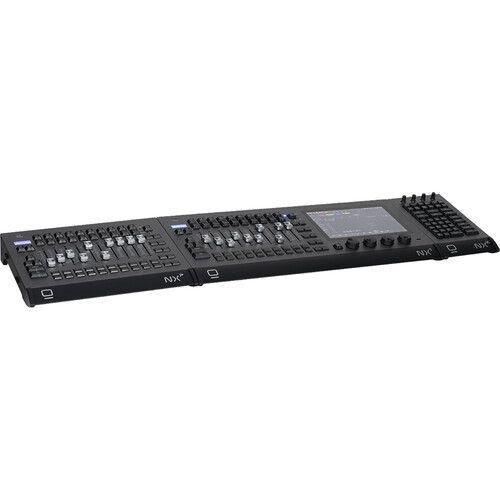

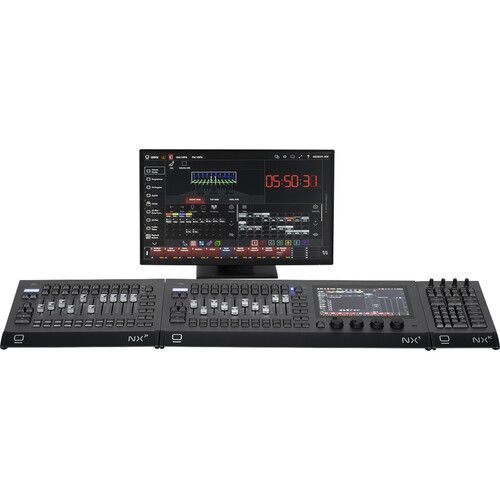

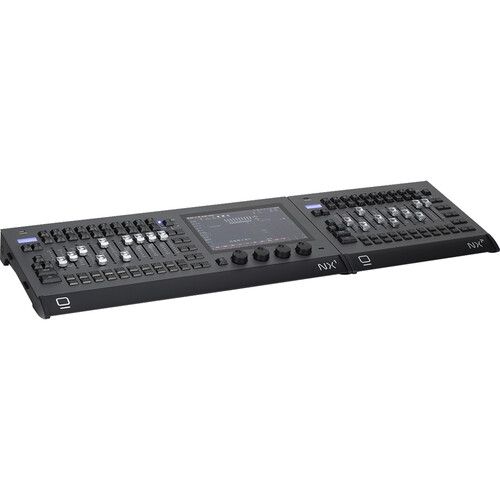

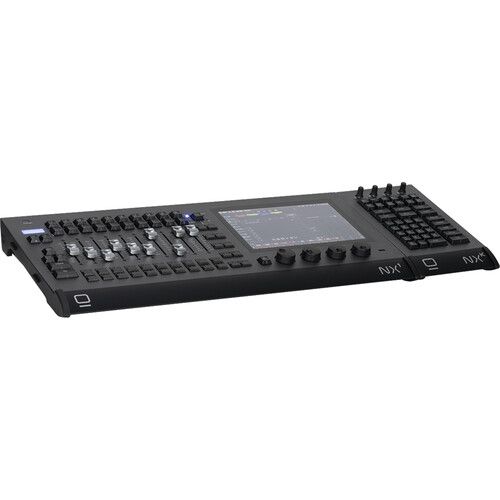

- Expandable with the dedicated NXK keypad and the NXP motorized playback wing.
Obsidian NX1 Specs
General
| Compatibility | ONYX Lighting Systems |
Display
| Panel Type | TFT LCD |
| Display Size | 10.1" |
| Resolution | 1920 x 1200 |
| Touchscreen | Yes |

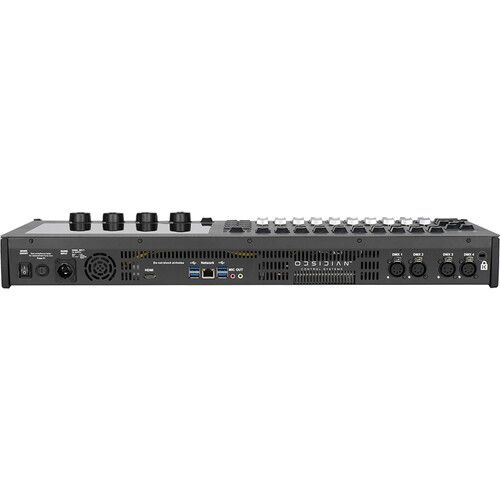

Inputs / Outputs
| USB I/O | 4 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input/Output 1 x USB-A 2.0 Female Input/Output |
| Video I/O | 1x HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Mic Input 1x 1/8" / 3.5 mm TRS Output |
Power
| Power Source | AC Input (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 104 W |
Physical
| Dimensions | 25 x 11.8 x 2.8" / 636 x 298.5 x 71 mm |
| Weight | 17.9 lb / 8.1 kg |
Packaging Info
| Package Weight | 24.24 lb |
| Box Dimensions (LxWxH) | 29.3 x 18.2 x 8.7" |
