Key Features
- Two 3.5" Polypropylene Mid-Woofers
- Back-Chamber Silk Dome Tweeter
- Class-D, Biamped, 100W RMS
- DSP-Tuned Bass Reflex
- Frequency Response: 40 Hz to 24 kHz
- Max SPL: 100 dB
- Built-In ARC Calibration System with Mic
- Customized Settings: LF, HF, Desktop
- Combo XLR-1/4" Input
- Includes Tilting Stand
IK Multimedia iLoud MTM Overview

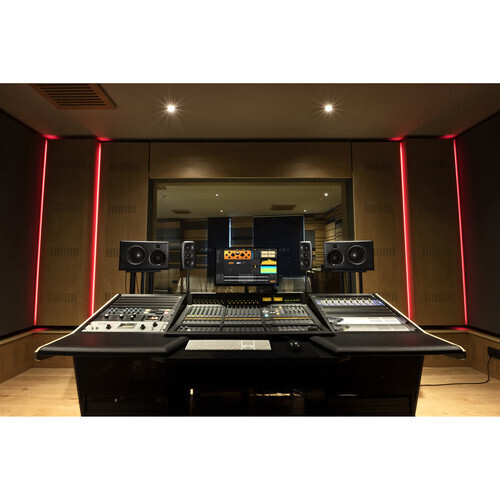

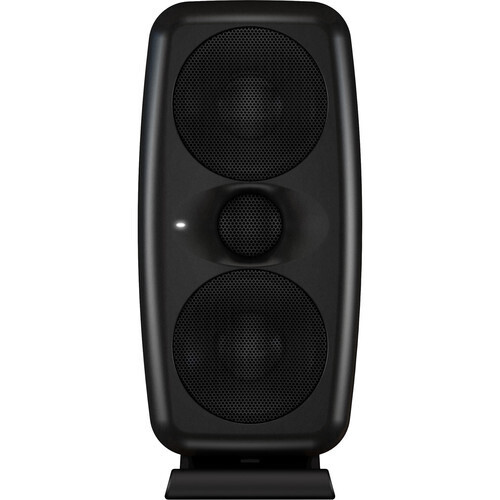

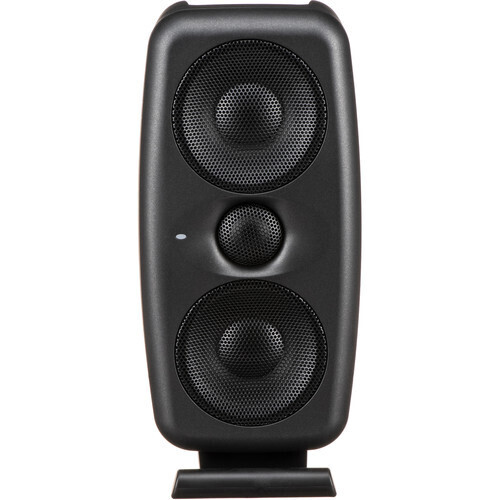

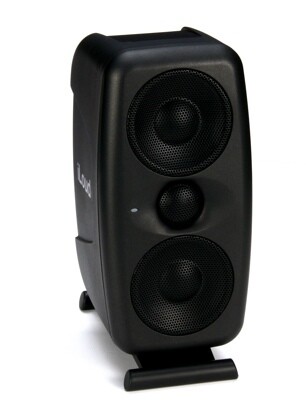

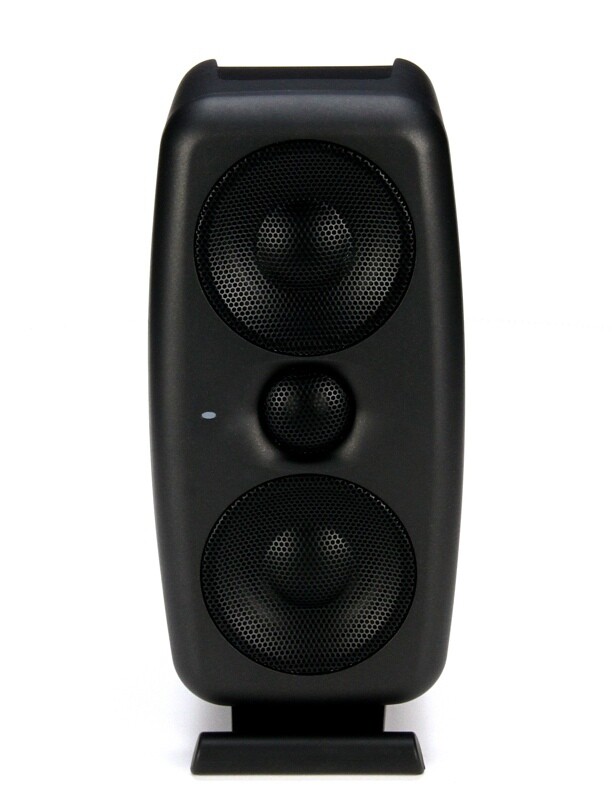

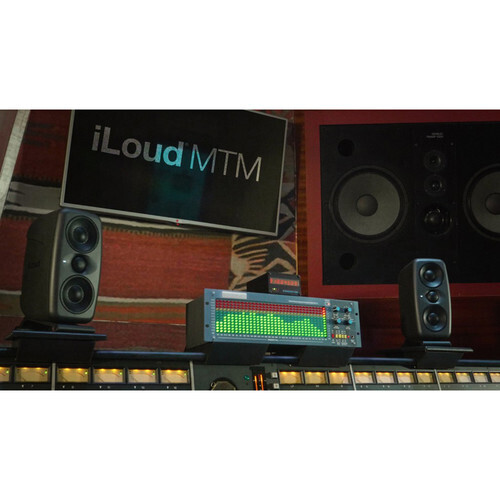

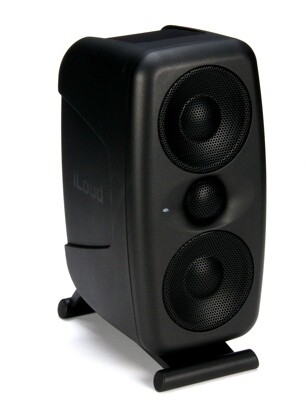

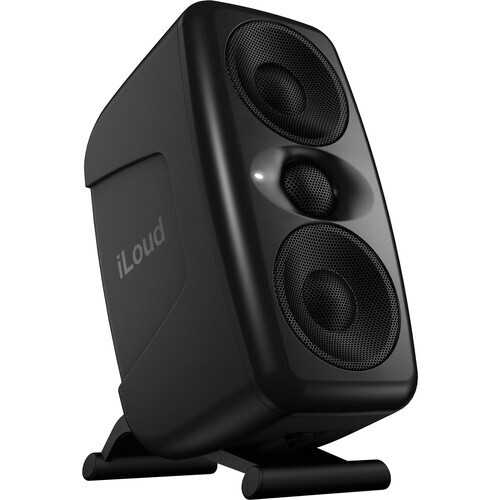

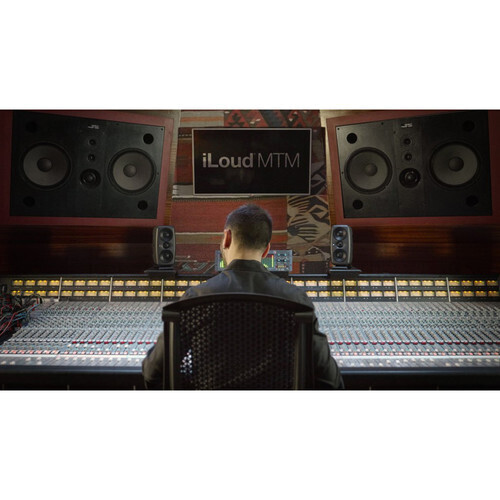

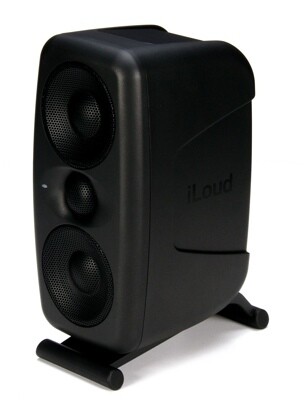

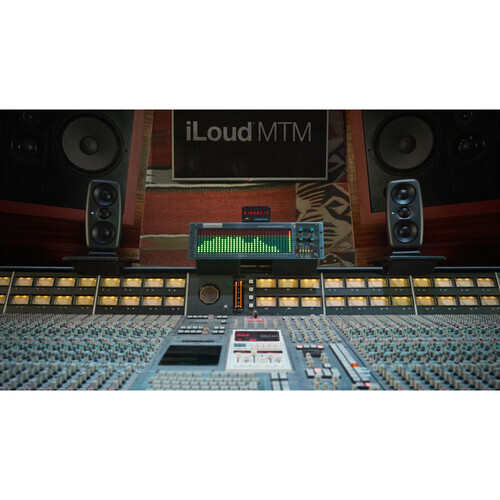

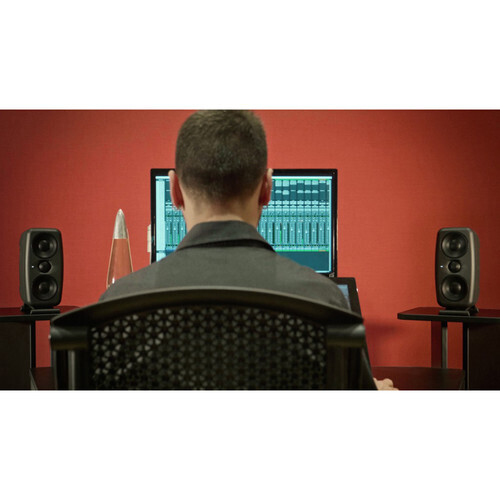

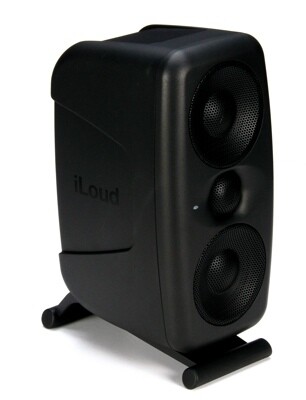

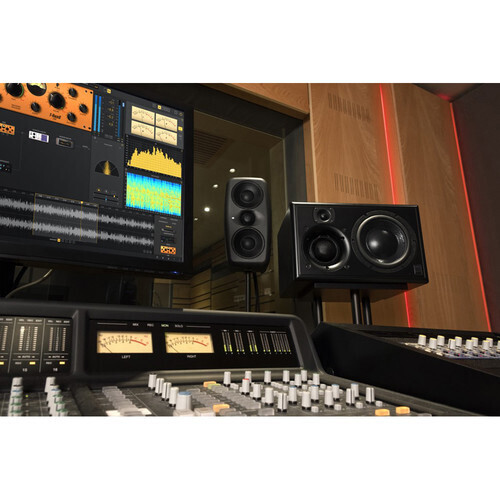

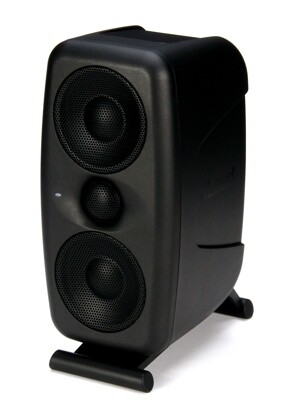

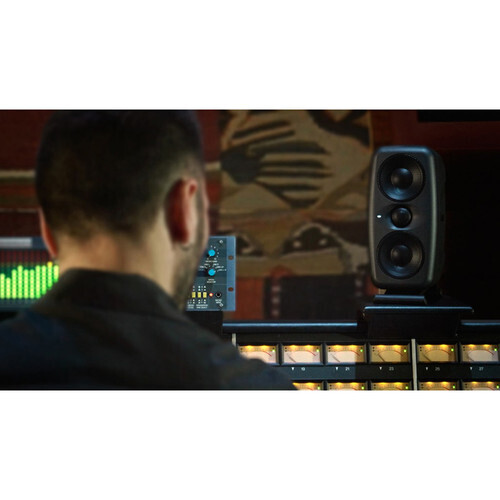

Styled in a black finish, the IK Multimedia iLoud MTM is a compact, high-resolution studio monitor designed to deliver accurate, uncolored sound for professional recording studios, project studios, and broadcast applications. IK Multimedia's patent-pending Physical Response Linearization (PRL) system uses a precise model of the enclosure’s design, construction, and materials, combined with electro-mechanical measurements of the real units, to correct the system’s performance in real time, which results in a flat frequency response, accurate phase relationships, and a firm, balanced bass output that competes with other monitors that are twice the size.

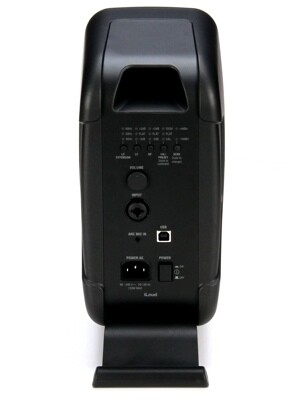

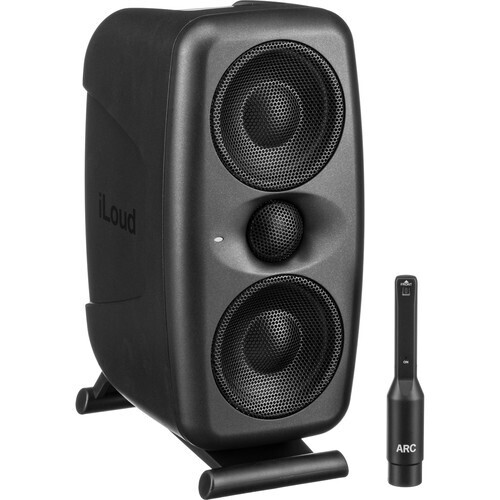

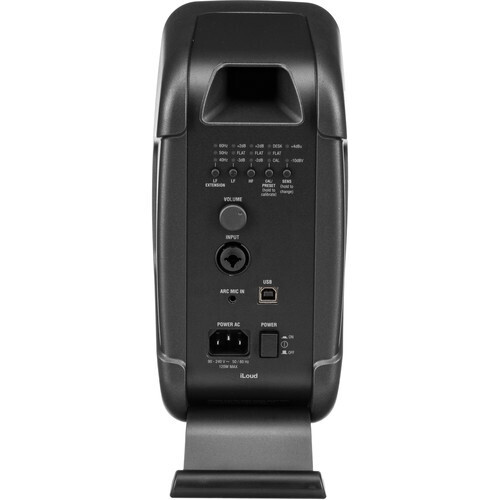

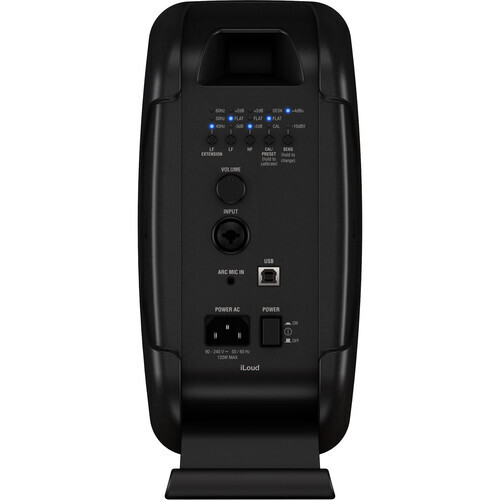

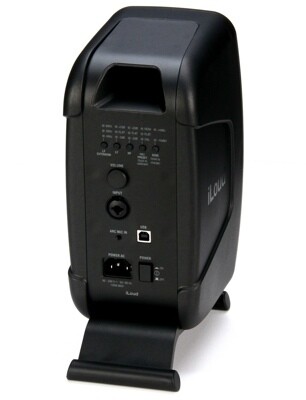

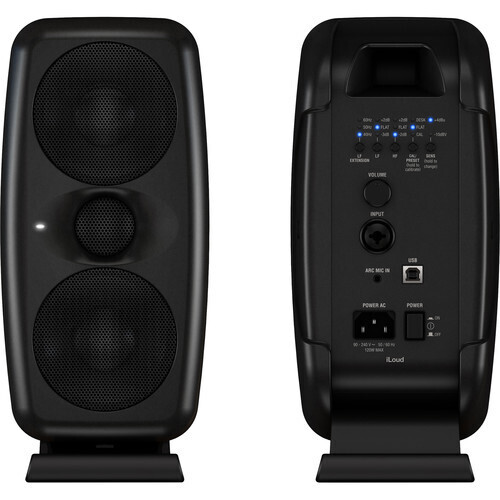

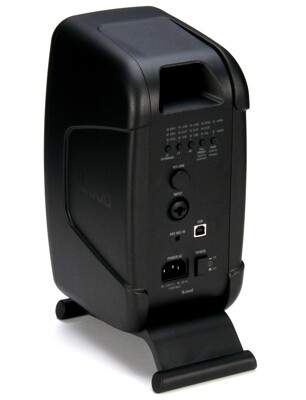

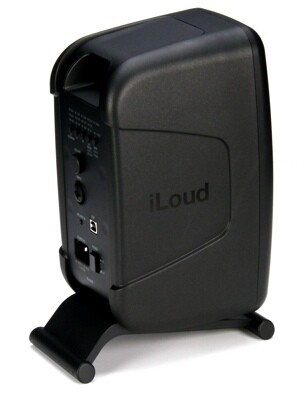

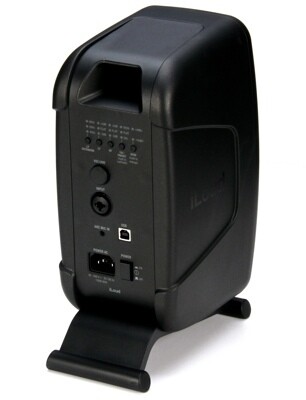

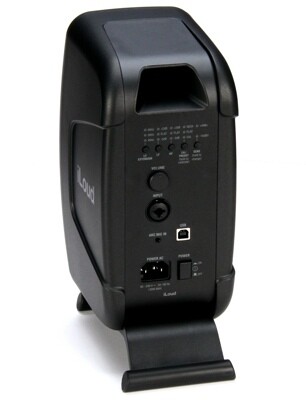

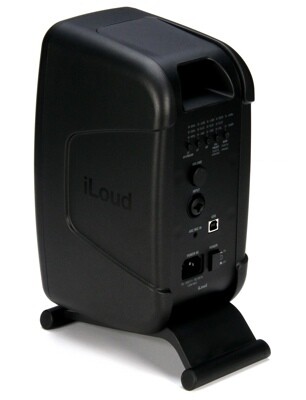

The MTM features a 100W Class-D biamplifier which drives 70W to the two 3.5" high-performance woofers and 30W to the single, back-chambered silk-dome tweeter, which combine for a frequency response of 40 Hz to 24 kHz and a maximum SPL output of 103 dB. The iLoud MTM offers built-in acoustic self-calibration via the included ARC reference microphone, which automatically adjusts the built-in DSP for true phase-coherency and precise, defined, point-source sound. The rear panel also offers options to further customize user settings including LF extension, LF boost/cut, and HF boost/cut.

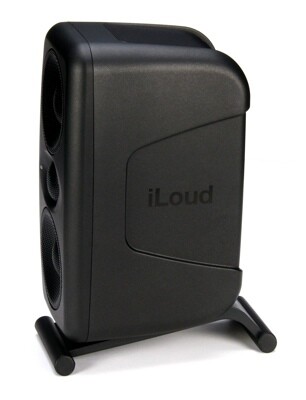

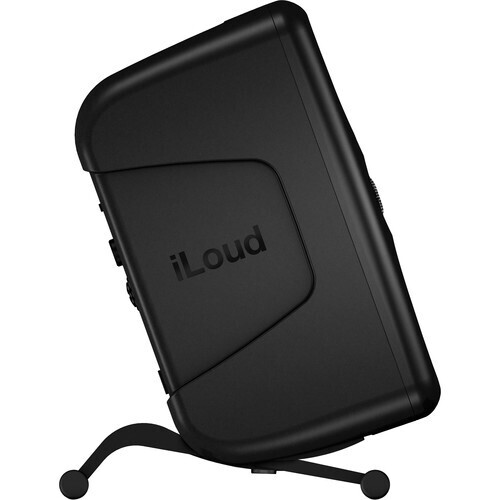

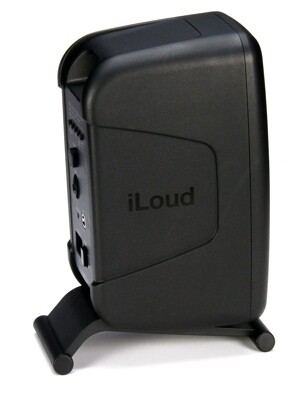

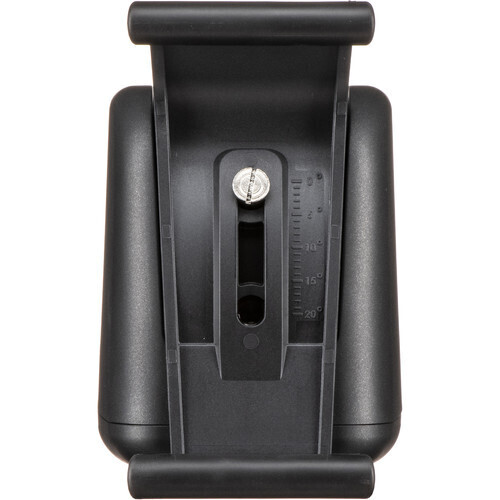

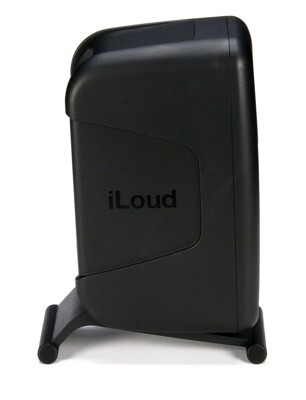

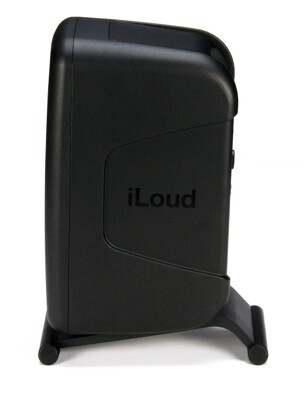

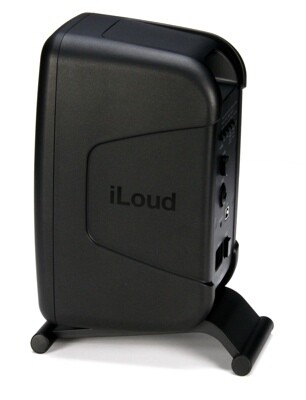

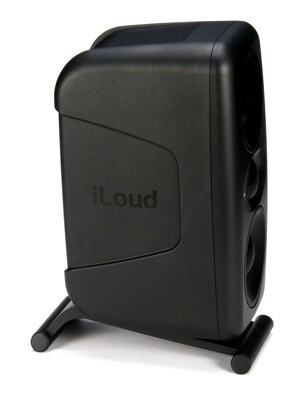

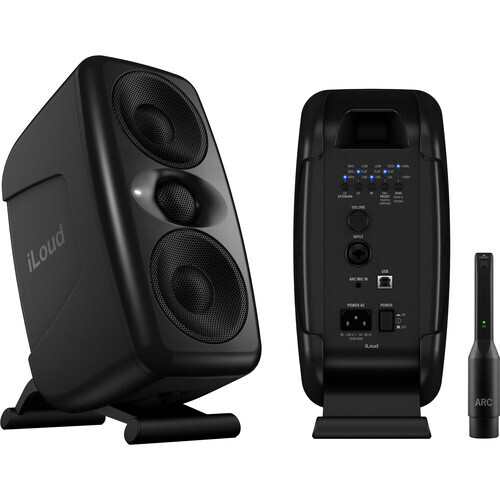

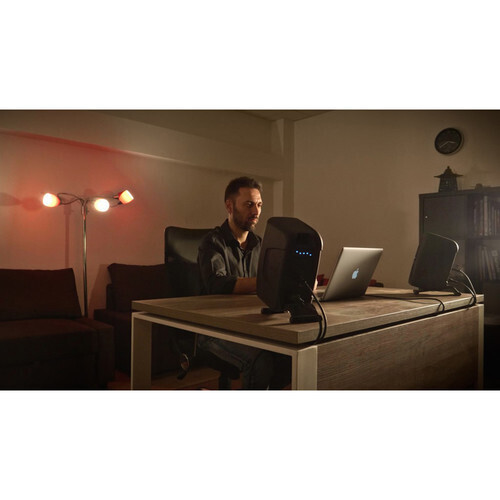

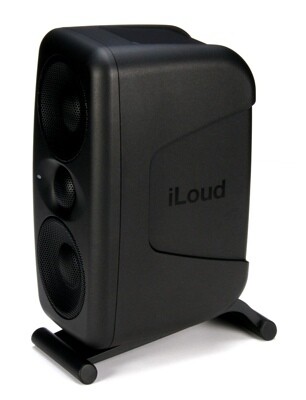

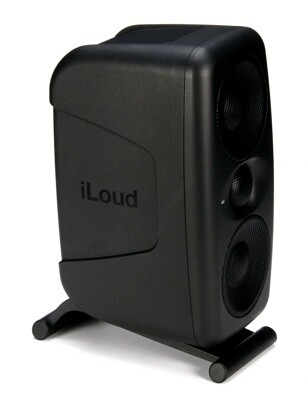

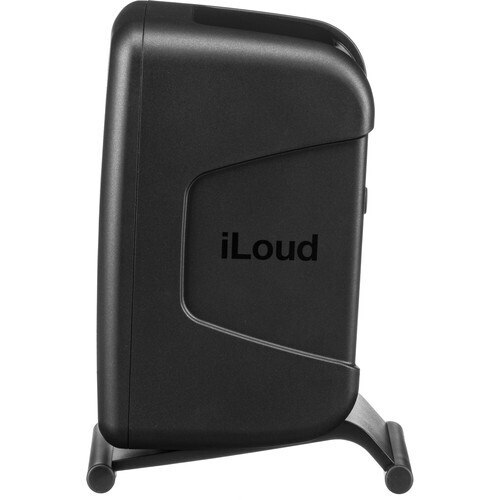

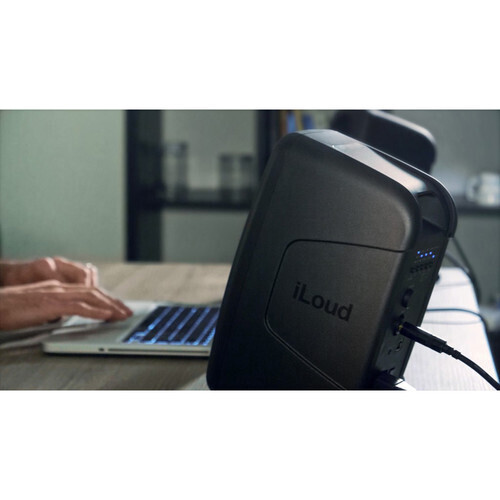

The included tilt mount allows you to set an angle from 0 to 20°, which helps isolate the dispersion away from flat surfaces such as desktops or mixing boards. Horizontal support feet are provided and the base includes a thread to mount to mic stands for more installation options. The IK Multimedia iLoud MTM Monitor includes the ARC microphone, an ARC mic cable, a power cord, a tilt stand, a horizontal support, and a locking key.
- Designed for accurate sound focus and controlled sound dispersion

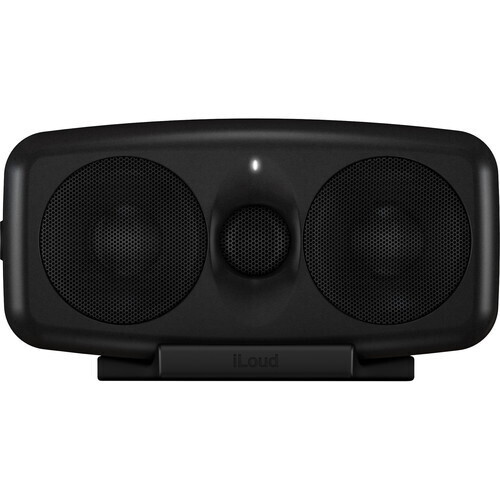

- Two 3.5” high performance polypropylene woofers
- Single 1” back-chamber loaded silk-dome tweeter
- 100W 2-way biamped speaker with Class-D amplifiers
- 103 dB max SPL
- Flat 50 Hz to 24 kHz frequency response
- Coherent phase response within +/-15° from 200 Hz to 24 kHz
- XLR-1/4" combo input, -10 dBv or +4 dBu selectable sensitivity
- EQ controls: LF extension, LF boost/cut, HF boost/cut
- Automatic environment calibration with included ARC measurement microphone
- Compact dimensions for easy positioning even in the smallest place

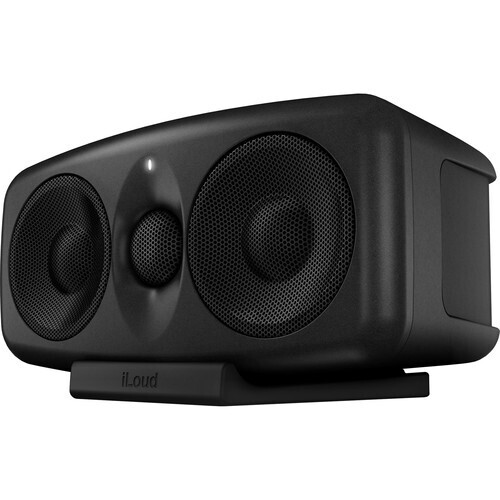

- Multiple positioning with included 20° tilt range insulated base, horizontal base, and built-in mic-stand thread
IK Multimedia ILoud MTM Specs
Studio Monitor
| Monitor Type | Active 2-Way |
| Enclosure | Bass-Reflex, Shielded |
| Power Rating | 100 W RMS |
| Drivers | LF Driver: 2 x 3.5" / 8.89 cm Polypropylene Woofer
HF Driver: 1 x 1" / 2.54 cm Silk Dome Tweeter |
| Amplification | 1 x LF Amplifier: Class-D Rated at 70 W RMS
1 x HF Amplifier: Class-D Rated at 30 W RMS |
Performance
| Frequency Range | 40 Hz to 24 kHz ± 3 dB |
| Frequency Response | 40 Hz to 24 kHz ± 3 dB |
| Maximum Sound Pressure Level (SPL) | 100 dB |
| Phase Adjustment | None |
Crossover
| Crossover Frequency | High-Pass Frequency: 3.1 kHz |
| Crossover Type | Active |
Connectivity
| Audio I/O | 1 x Combo XLR-1/4" Balanced Female Analog Input
1 x 1/8" / 3.5 mm TS Unbalanced Female Analog Input |
| USB & Network I/O | 1 x USB Type-B |
Power
| AC Input Power | 90 to 240 VAC, 50/60 Hz |
| Power Consumption | 120 W (Maximum) |
General
| Dimensions (W x H x D) | 10.4 x 6.3 x 5.1" / 26.4 x 16 x 13 cm (Active Speaker) |
| Weight | 5.5 lb / 2.5 kg (Each) |
Packaging Info
| Package Weight | 8.045 lb |
| Box Dimensions (LxWxH) | 12.6 x 9.25 x 8.4" |
