dbx VENU360 Overview

The DriveRack VENU360 from dbx is a loudspeaker-management processor designed to protect and optimize front-of-the house, stage monitor, delay-fill, and zone loudspeaker systems in clubs, outdoor music events, or houses of worship.

Connect the VENU360 between your mixer and amplifiers/powered speakers, and use it for precise feedback elimination, automatic speaker level and room equalization, crossover-frequency setting, dbx compression/limiting, driver alignment delay, and more.

The unit provides a 5 x 6 routing/mixing matrix (using four AES signals and one analog signal) and a 3 x 6 signal processing chain. The 24-bit A/D and D/A converters with dbx Type IV conversion protect the incoming audio signal from accidental digital clipping at the A/D stage, while the 32-bit floating point, 48 / 96 kHz internal processing produces professional audio quality with high headroom and wide dynamic range.

For easy operation, the Wizard functions guide you through simple, step-by-step processes to help you quickly configure the unit. For more control, you can use the manual mode which lets you customize each parameter separately. A large, bright, LCD display and nine 6-segment signal meters provide easy-to-read visual feedback. Additionally, the free DriveRack VENU360 control application offers network control via the built-in Ethernet port, and is available for iOS, Android, Mac, and Windows-compatible devices.

Provides a 5 x 6 routing/mixing matrix with a 3 x 6 signal processing chain

24-bit A/D & D/A converters with dbx Type IV conversion and 48 / 96 kHz, 32-bit floating-point processing – with sample rate conversion

Setup Wizard for easy system configuration and Level Assist Wizard for system level balancing

AutoEQ Wizard for fast & accurate room equalization using 10-band parametric EQ; further user adjustments can be made to bands 11 to 14

AFS Wizard for easy & accurate feedback suppression

Support for multi-mono, stereo, LCR, & aux-fed sub input configurations

Selectable 31-Band graphic EQ or 12-band parametric EQ with narrow notch capabilities for speaker tuning

Input Delay processing for aligning the sound system of the stage backline, and Fill Delay processing for balcony & tower delays – up to 3000 ms total cascaded delay time (3 x configurable delay modules at 1000 ms each)

dbx compression with dbx PeakStopPlus output limiters

Crossover with support for full range up to mono 6-way configurations – selectable crossover filter types & slope rates with adjustable polarity & variable phase control

Noise Gate to remove unwanted low-level noise in sound system

Subharmonic Synthesis for deep, punchy bass

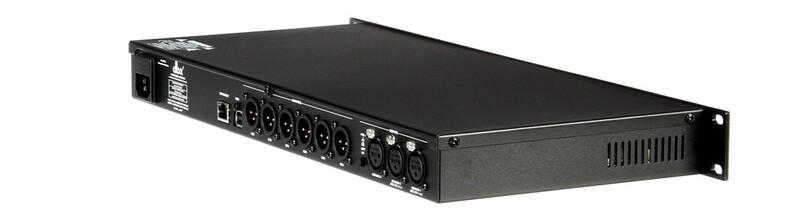

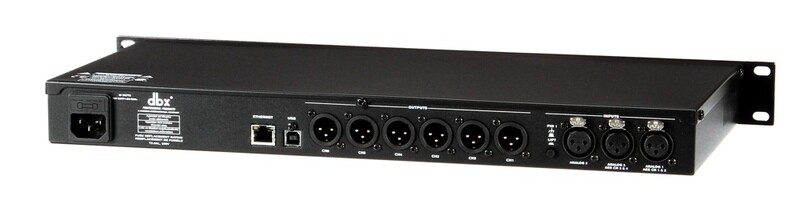

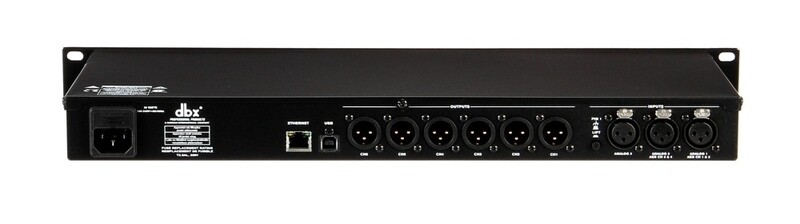

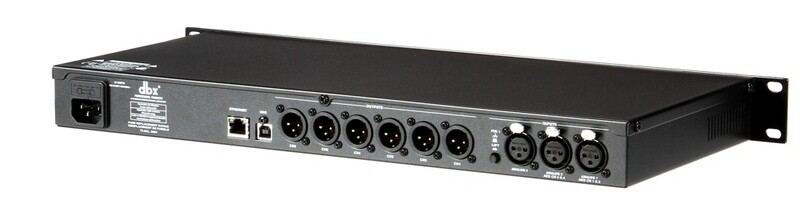

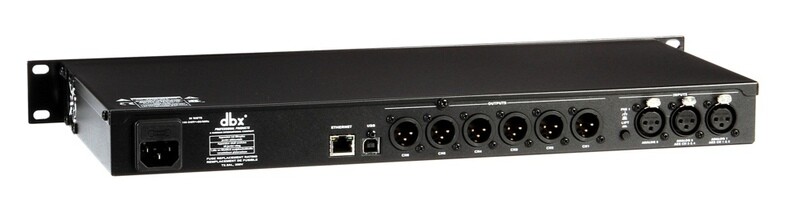

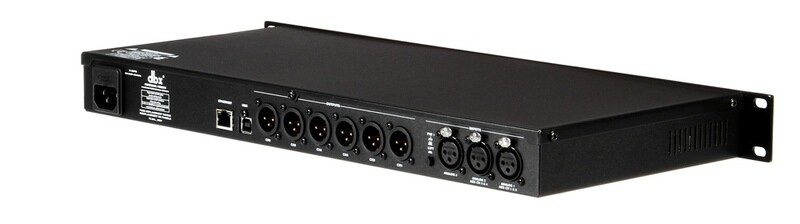

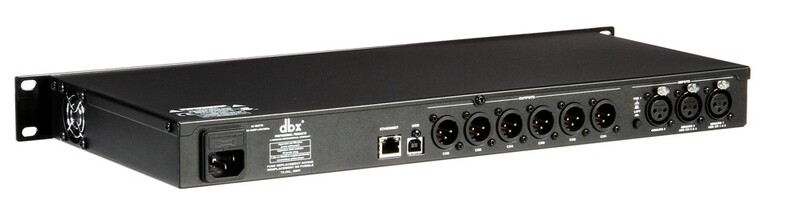

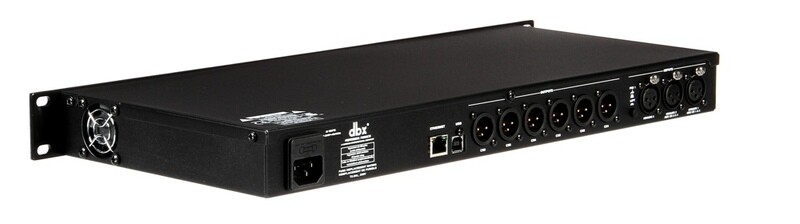

3 x XLR inputs (selectable between 4 x AES or 3 x analog input channels), and 6 x analog outputs

Front-panel RTA mic input with 48V phantom power

Built-in signal generator & RTA for system fine-tuning & troubleshooting

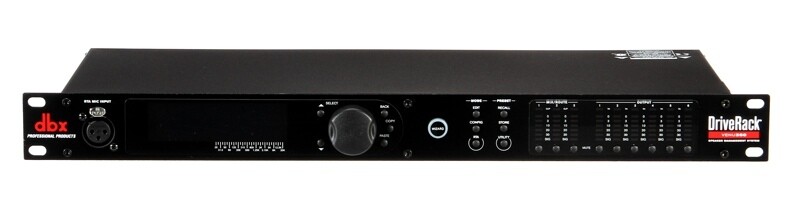

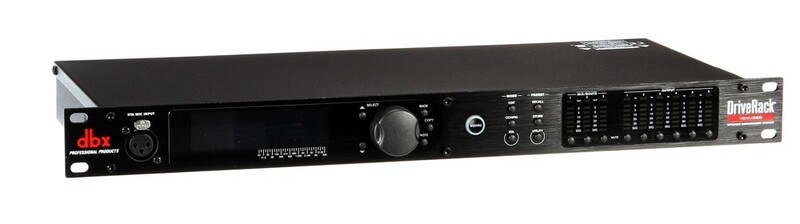

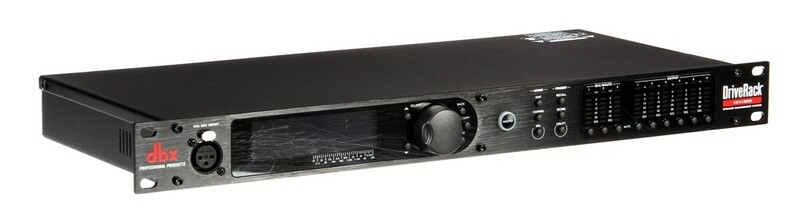

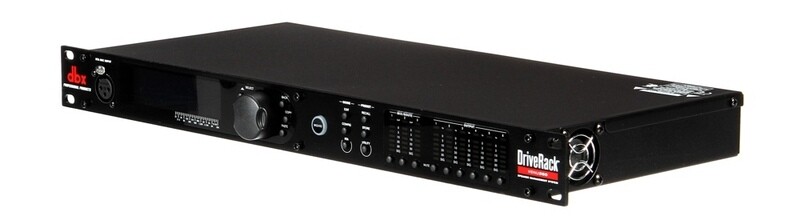

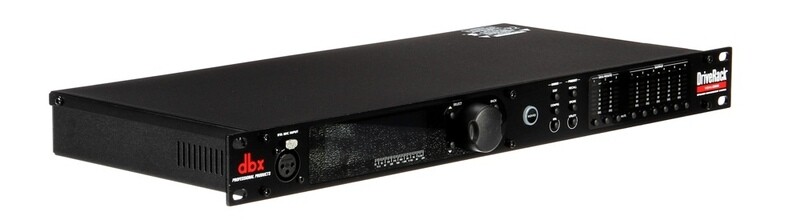

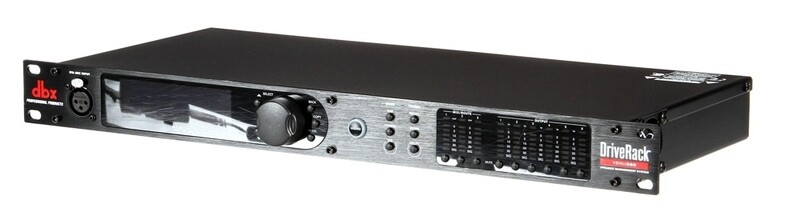

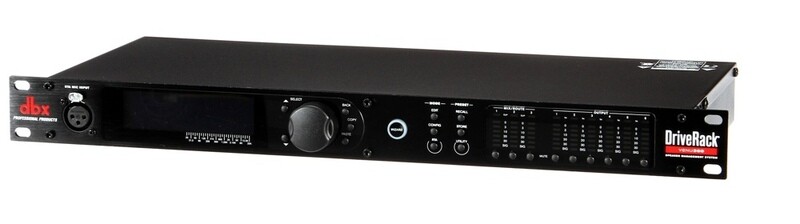

Large, bright, easy-to-read LCD display and 6-segment signal meters with input clip & output limiter indicators

25 x factory / 75 x user presets with various speaker & amplifier tunings included

Network control via the free VENU360 Control Application for iOS, Android, Mac & Windows-compatible devices

Dbx VENU360 Specs

Inputs	Number of Inputs: 3 x analog line inputs / 2 x AES digital inputs (shared connectors), 1 x RTA mic input Connectors: 3 x female XLRs (2 x selectable between analog / AES digital audio formats), 1 x female XLR RTA mic input Type: Electronically balanced, RF filtered Impedance: > 30 kOhms, balanced line to line Max Input Level (Line Inputs): > +28 dBu, balanced, ≤ 1% THD CMRR: > 50 dB at 1 kHz RTA Mic Preamp Phantom Power: +48 VDC
Analog Outputs	Number of Outputs: 6 x line outputs Connectors: Male XLR Type: Electronically balanced, RF filtered Impedance: 120 Ohms, balanced line to line Max Output Level: +22 dBu, balanced, ≤1% THD Alignment Delay: Up to 1000 ms per output channel
A/D Conversion	A/D Converter: 24-bit with dbx Type IV conversion system A/D Dynamic Range: 117 dB A-weighted, 114 dB unweighted, 22 kHz BW Type IV Dynamic Range (22 kHz BW): 129 dB with transient material / A-weighted, 126 dB with transient material / unweighted, 121 dB typical with program material / A-weighted
D/A Conversion	D/A Converter: 24-bit D/A Dynamic Range: 116 dB A-weighted, 113 dB unweighted, 22 kHz BW
System Performance	Internal Processing Wordlength: 32-bit floating point Supported Sample Rates: 48/96 kHz (32-192 kHz using sample rate conversion) Dynamic Range: 114 dB A-weighted, 110 dB unweighted THD+Noise: 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain Frequency Response: 20 Hz - 20 kHz, +0 /- 0.5 dB Interchannel Crosstalk: < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured Latency: 2.57 ms at 48 kHz, 2.28 ms at 96 kHz (Analog input to output) / 2.31 ms at 48 kHz, 2.15 ms at 96 kHz (Digital AES input to output) Operating Temperature: 32 to 104° F / 0 to 40° C
Compatibility	N/A
Power Supply	Operating Voltage: 100-240 VAC, 50/60 Hz Power Consumption: 30 W
Dimensions (H x W x D)	1.75 x 19.00 x 8.00" / 4.45 x 48.26 x 20.32 cm
Weight	5.48 lb / 2.49 kg
