Key Features
- 1" Large Diaphragm
- Cardioid Polar Pattern
- True Condenser Transducer
- Shockmounted Capsule

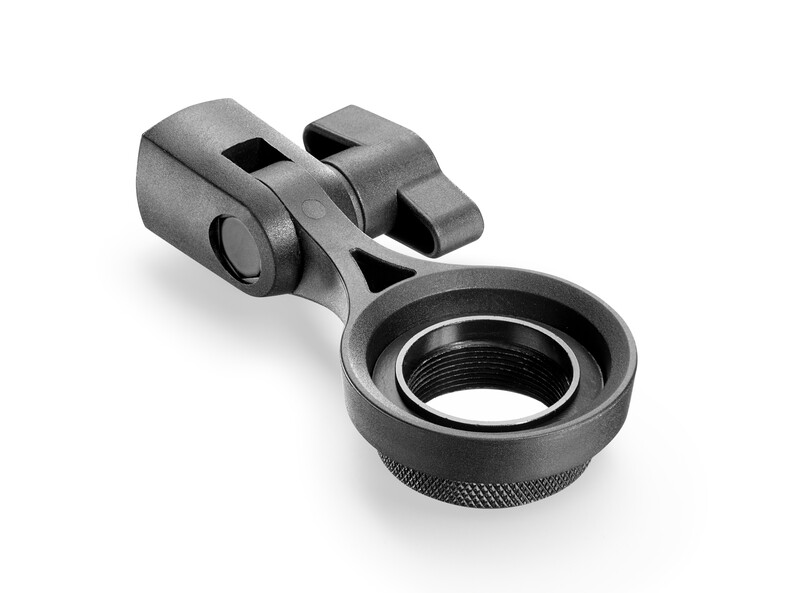

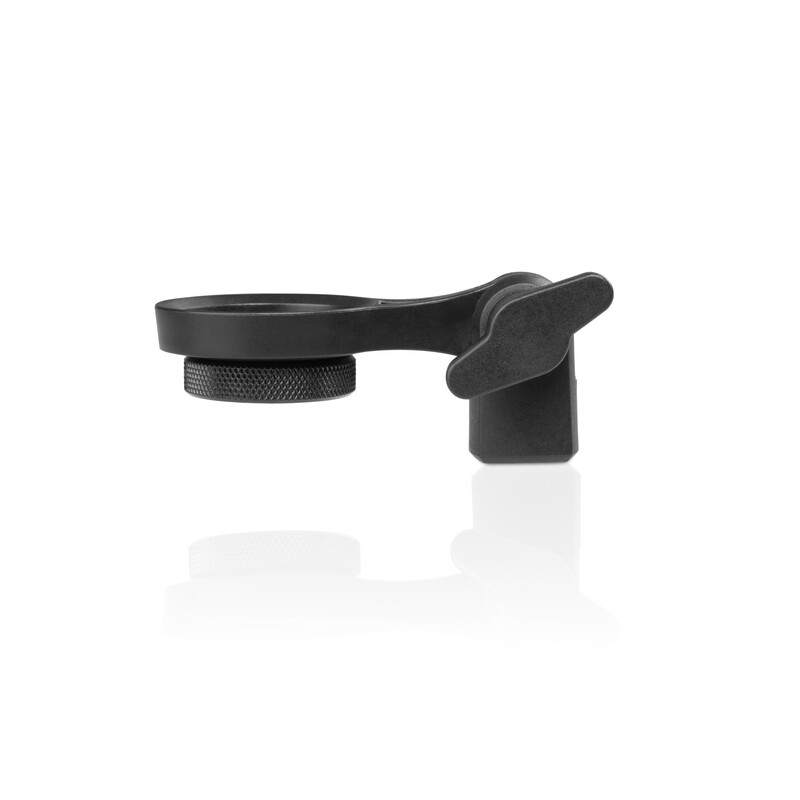

- Includes Microphone Clamp
- Carrying Pouch

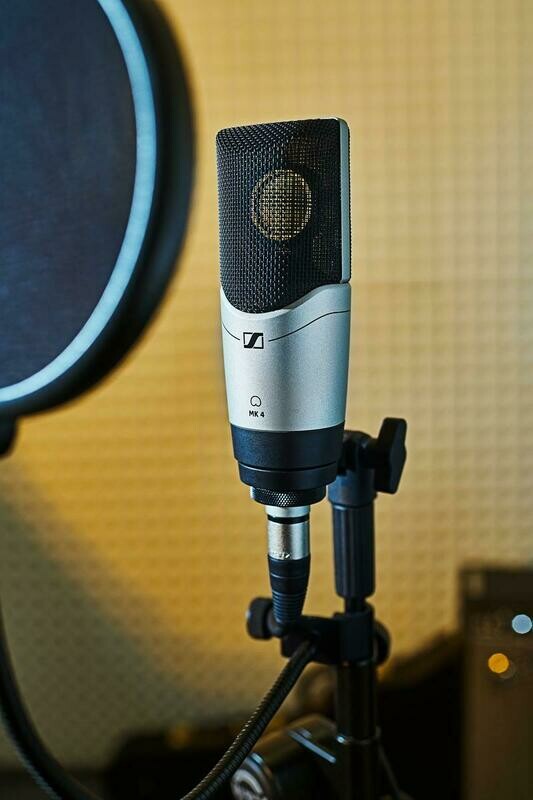

Sennheiser MK-4 Overview

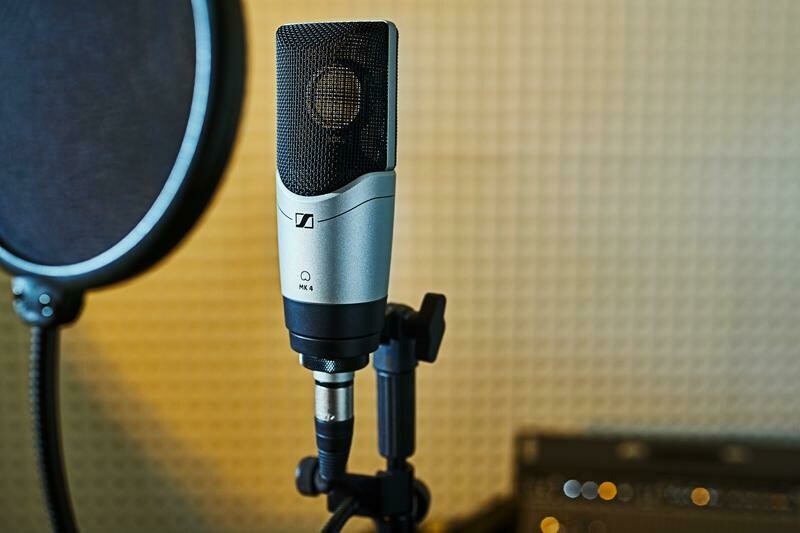

The MK 4 Large-Diaphragm Studio Condenser Microphone from Sennheiser is a condenser microphone with fine resolution and sound quality. It can be used for home studio engineers, production studios, and sound reinforcement applications.
The MK 4 features a 1" large-diaphragm transducer for a full sound, a wide-frequency response, and low noise. The mic element is shockmounted to eliminate structure-borne noise and vibration. Its sensitivity and frequency response make it well suited for general vocal recording, instruments, amplifier cabinets, and more.
Large-diaphragm capsule (1")
True-condenser design
24K gold-plated diaphragm
Full-metal housing
Capsule shockmounted internally to minimize structure-borne noise
Designed for project studios and stage use
Low inherent self-noise and high maximum SPL
Made in Germany
Sennheiser MK-4 Specs
Microphone
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Condenser |
| Diaphragm | 1" / 25.40 mm |
| Polar Pattern | Cardioid |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 140 dB SPL |
| Impedance | 50 Ohms |
| Load Impedance | 1 Kilohms |
| Sensitivity | 25 mV/Pa |
| Dynamic Range | 130 dB |
| Equivalent Noise Level | 10 dB A-Weighted 20 dB CCIR |
Connectivity
| Output Connectors (Analog) | 1 x XLR 3-Pin |
Power
| Operating Voltage | 48 V |
| Operating Current Consumption | 3.1 mA |
Physical
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Dimensions | ø: 2.24 x L: 6.3" / ø: 57 x L: 160 mm |
| Weight | 1.07 lb / 485 g |
Packaging Info
| Package Weight | 1.72 lb |
| Box Dimensions (LxWxH) | 10.35 x 4.7 x 3.3" |
UPC: 615104186057
