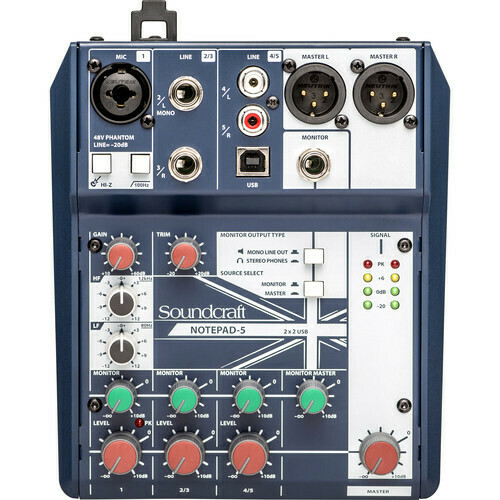

Soundcraft Notepad-5 Small-Format Analog Mixing Console with USB I/O #SO5CDTMUSB MFR #NOTEPAD-5

Home/New Products

Product Details

Key Features

One Combo XLR-1/4" Mic/Line Input
Two 1/4" Line Inputs and Two RCA Inputs
2-In/2-Out USB Audio Interface
Master XLR Outputs

The Notepad-5 from Soundcraft is a small-format, 5-channel analog mixing console with an integrated 2x2 USB audio interface, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as a microphone preamp with a combo XLR-1/4" input, 2-band EQ, and a 100 Hz high-pass filter. Additionally, input 1 offers a Hi-Z instrument input for incorporating guitars and other high-impedance instruments.

Channels 1-3 include gain/trim controls, a monitor send, and level controls. Channels 2/3 utilize 1/4" line-level inputs, while channels 4/5 include stereo RCA inputs. Outputs include Master L/R on XLR, a 1/4" monitor send, and a dedicated 1/4" monitor output button to select between mono line output or stereo headphone output. The master section offers a master control knob and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-5 features a durable metal enclosure and ships with an external power supply.

Soundcraft-quality sound from the professional microphone preamp
Easily record, edit, and play back from your Mac or Windows computer with an integrated USB audio interface. Simply plug-and-play with your Mac (Windows computers require Soundcraft driver installation)
Getting a great mix is easy with a familiar channel-strip layout that includes EQ, monitor send, master level, and rotary headphone-volume control
Durable metal enclosure that’s built to last

Soundcraft NOTEPAD-5 Specs

Inputs	Mic/Line (Channel 1): 1 x combo XLR-1/4" / 6.35 mm Line (Channels 2/3): 2 x 1/4" / 6.35 mm Line (Channels 4/5): 2 x RCA
Outputs	Master (L/R): 2 x XLR Monitor: 1 x 1/4" / 6.35 mm
Controls	Gain (Channel 1): 1 x Gain knob Trim (Channels 2/3): 1 x Trim knob Monitor Send (Channels 1, 2/3, 4/5): 3 x Monitor send knobs Level (Channel 1, 2/3, 4/5)): 3 x Level knobs Master Level: 1 x knob Monitor Master: 1 x Monitor master knob Output Type: Button for mono line out or stereo headphones
EQ Controls	2-Band EQ (Channel 1) HF: ±12 at 12 kHz LF: ±12 at 80 Hz
Indicator LEDs	Meters: 4 x LED (-20, 0, +6 dB, Peak)
Dimensions	Not specified by manufacturer
Weight	Not specified by manufacturer

Packaging Info

Package Weight	2.265 lb
Box Dimensions (LxWxH)	10.35 x 8.95 x 3.55"
