Name: Sennheiser XSW2-ME3 Wireless Headset Microphone System (A: 548 to 572 MHz)#SEXSW2ME3A • MFR #XSW 2-ME3-A
Brand: SENNHEISER
SKU: 507139
Price: 568.24 USD
Availability: OutOfStock

Sennheiser XSW 2-ME3 Overview

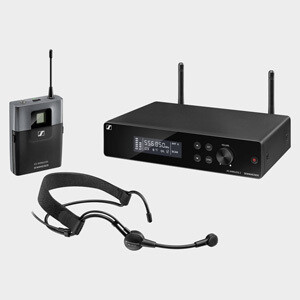

The XSW2-ME3 Wireless Headset Microphone System features a true diversity receiver, a compact bodypack transmitter, and an ME 3-II headset microphone with a locking 1/8" mini-jack connector. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for presenters, moderators, and other live-sound applications.

The system is built with automatic frequency management and synchronization so you don't have to scramble to find an available channel. It offers an intuitive LCD display, two external antennas, and is built with a metal receiver housing. In addition, a rackmount kit, power supply, carry pouch, and two AA batteries are also included.

Lightweight ME 3-II headset mic for hands-free operation and a compact bodypack transmitter

True diversity receiver with metal housing

External antennas

Automatic frequency management and synchronization

Remote channel for easy setup

Fully tunable over a wide range of UHF frequencies

Rackmount kit included

Up to 12 compatible channels

UPC: 615104279513

In the Box

Sennheiser XSW2-ME3 Wireless Headset Microphone System (A: 548 to 572 MHz)

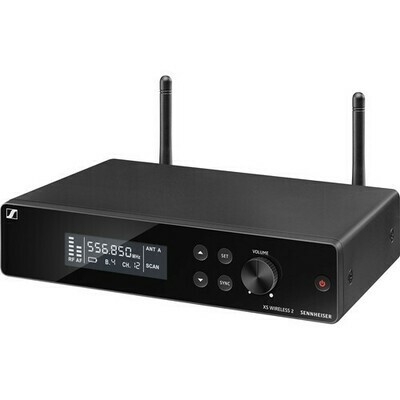

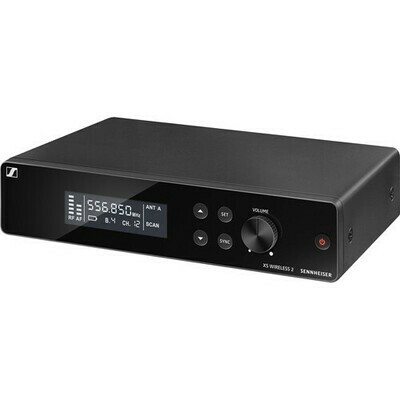

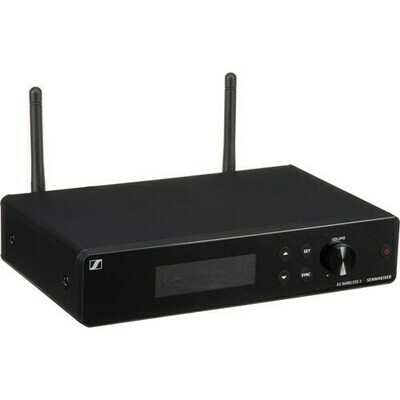

EM-XSW 2 Receiver

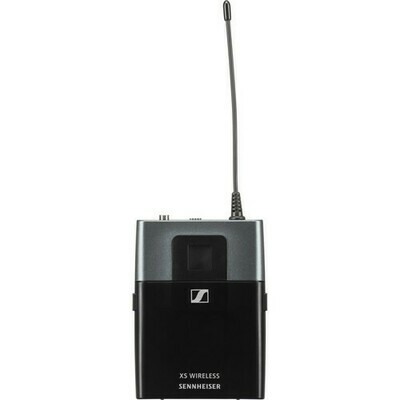

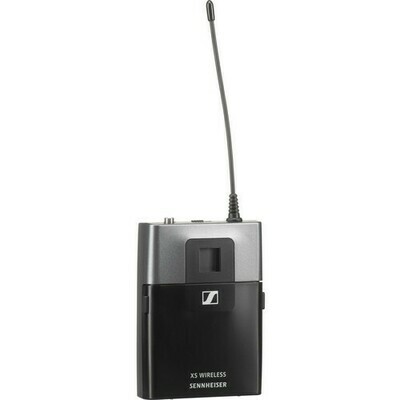

SK-XSW Bodypack Transmitter
ME3-2 Headset Microphone
2 x AA Batteries
NT 12-5 CW Power Supply
Rackmount Kit
Protective Pouch

Sennheiser XSW 2-ME3 Specs

System

Modulation	Wideband FM
Frequency Range	A: 548 to 572 MHz
Switching Bandwidth	Up to 24 MHz
Frequencies	Adjustable in 25 kHz steps 8 frequency banks, each with up to 12 factory-preset channels
Signal to Noise Ratio	≥ 103 dBA
Total Harmonic Distortion (THD)	≤ 0.9%
Temperature Range	Operation: 32 to 104°F (0 to 40°C) Storage: -4.0 to 158°F (-20 to 70°C)
Transmitter Synchronization	2.4 GHz, low power OQPSK (only active during synchronization)

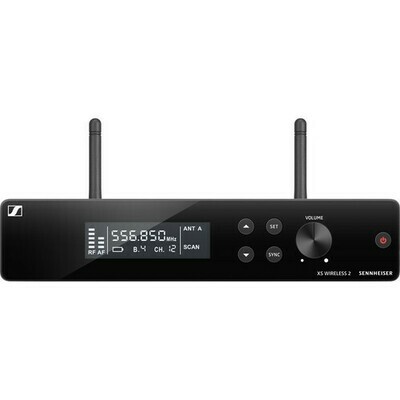

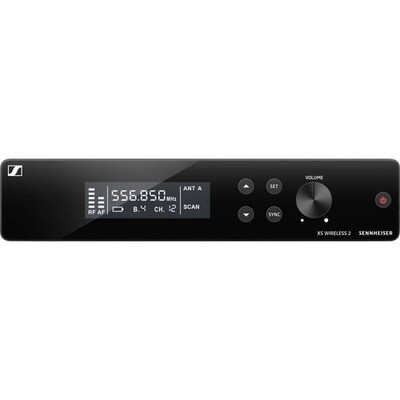

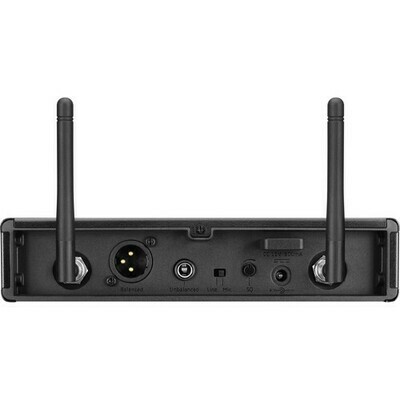

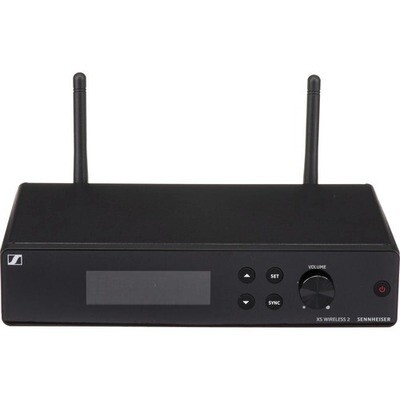

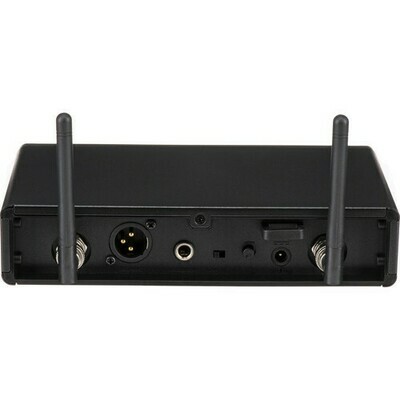

Receiver

Principle of Operation	Double superheterodyne
Diversity Method	True diversity
Sensitivity	< 3 µV at 52 dBA rms S/N at (peak deviation)
Frequency Response	50 Hz to 16 kHz (-3 dB)

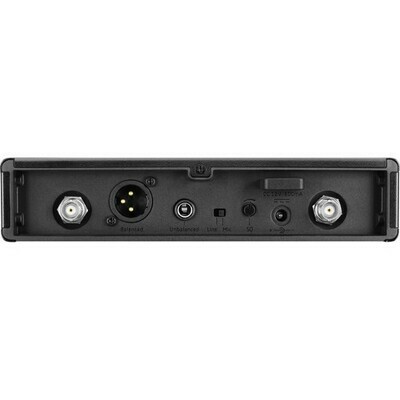

Maximum AF Output Voltage	At peak deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu XLR Socket (Balanced): +12 dBu
Adjustment Range	Audio: 40 dB, adjustable in 5 dB steps
Power Supply	12 VDC nominal, 300 mA
Squelch	Adjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone)
Line/Mic Level	20 dB, switchable
Housing Material	Rugged metal housing
Dimensions (W x H x D)	7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
Weight	24 oz (680 g)

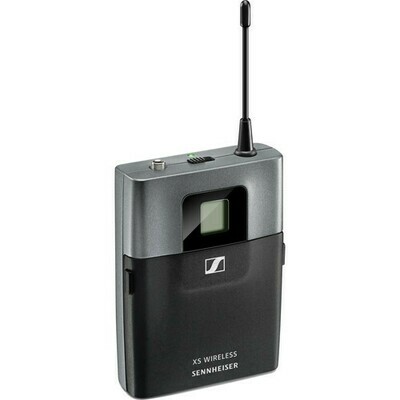

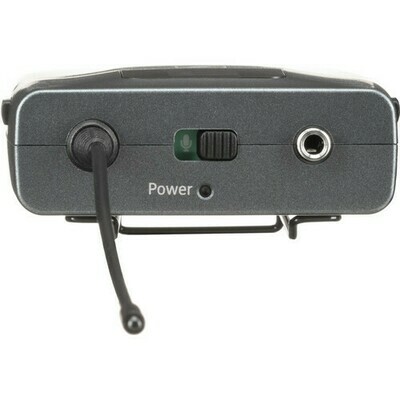

Transmitter

RF Output Power	10 mW
AF Frequency Response	50 Hz to 16 kHz (Line) 80 Hz to 16 kHz (Mic)
Audio Input	1/8" (3.5 mm) jack socket
Input Voltage	Maximum at 3% THD: Mic: Typ. 1.5 V rms Line: Typ. 2.6 V rms @ -30 dB gain
Power Supply	2 x AA size batteries, 1.5 V
Operating Time	Approximately 10 hours
Sensitivity Adjustment	Range: 0 to -30 dB, adjustable in 10 dB steps
Housing Material	Rugged ABS housing
Dimensions (W x H x D)	2.8 x 3.8 x 1.1" (71 x 96 x 28 mm) approximate
Weight	3.4 oz (95 g) approximate

Microphone

Transducer Principle	Condenser, pre-polarized
Sensitivity	1.6 mV/Pa
Pickup Pattern	Cardioid
Maximum SPL	150 dB
Dimensions	Not specified by manufacturer
Weight	Not specified by manufacturer

Packaging Info

Package Weight	4.86 lb
Box Dimensions (LxWxH)	13.75 x 12.7 x 3.65"
