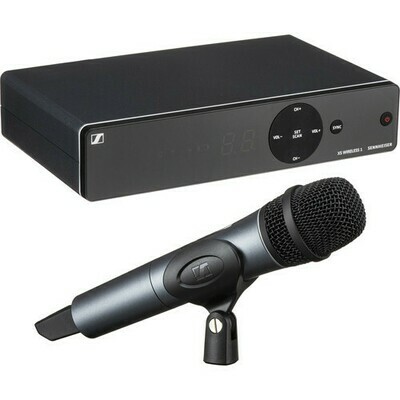

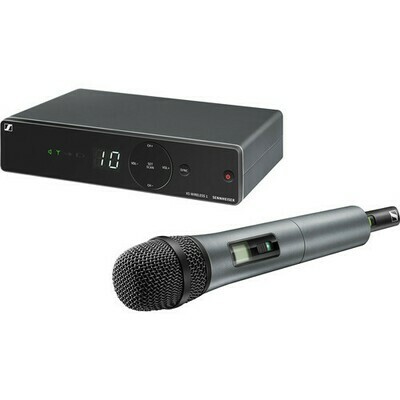

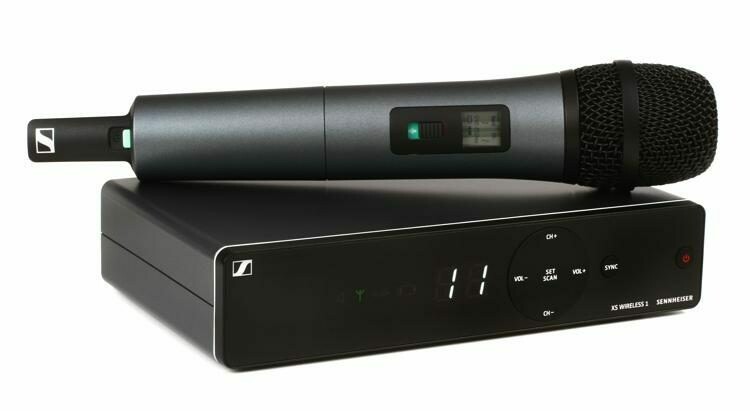

The XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications.

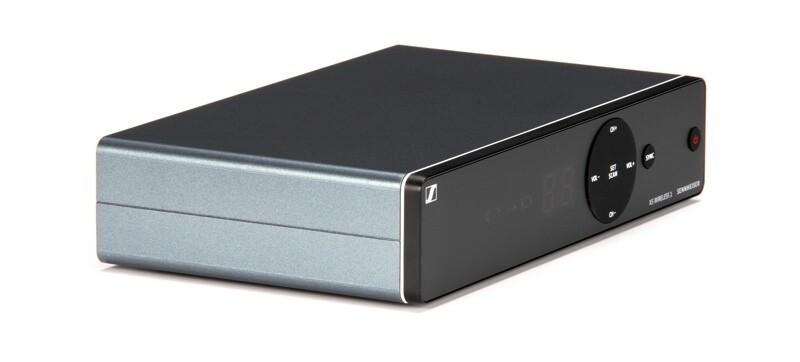

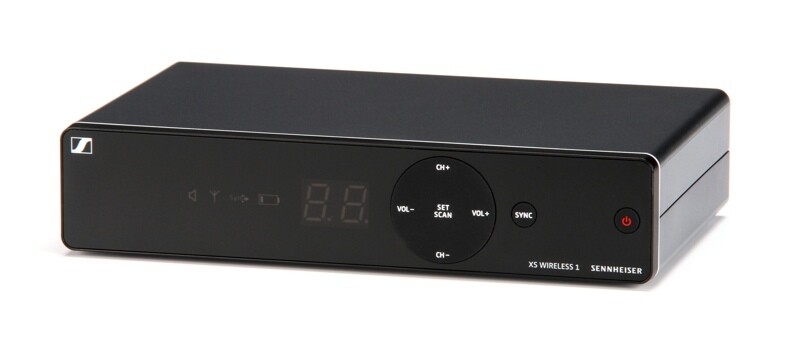

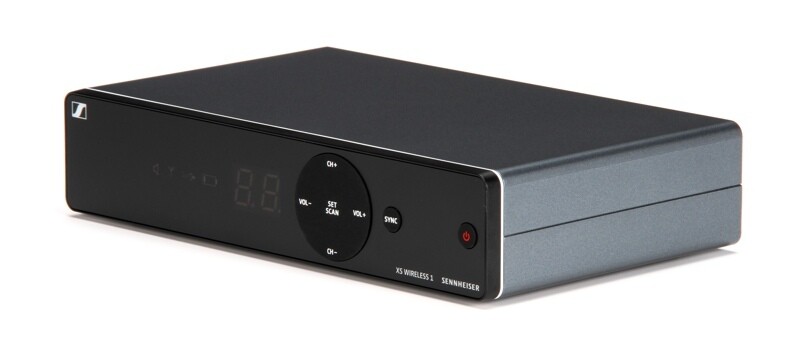

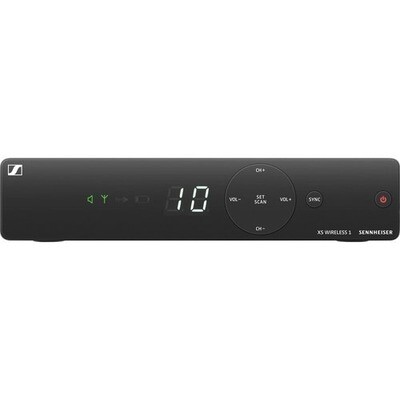

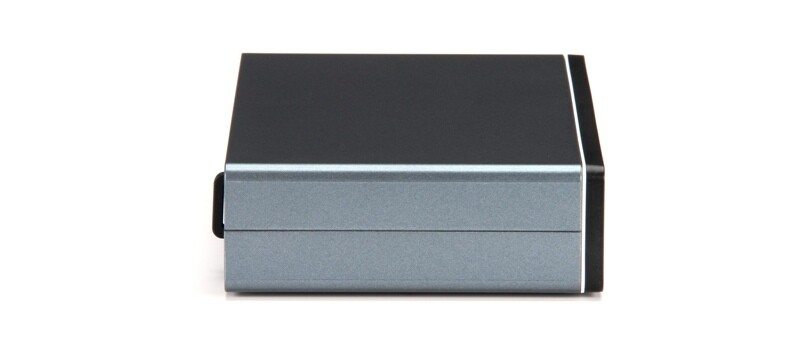

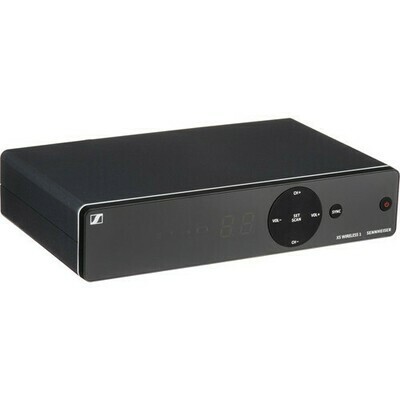

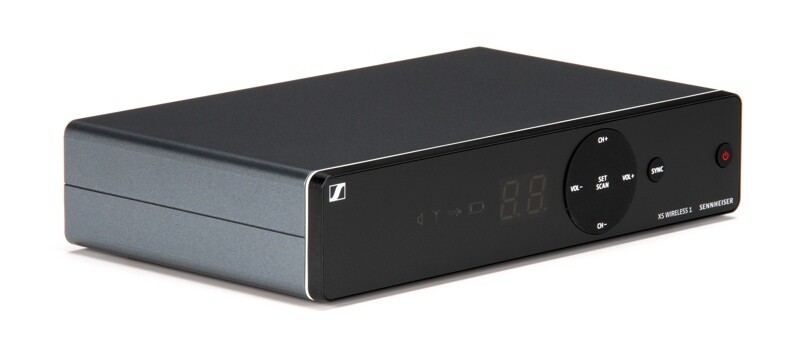

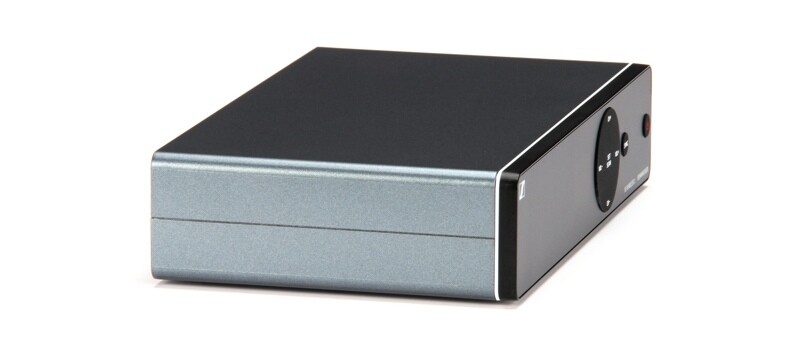

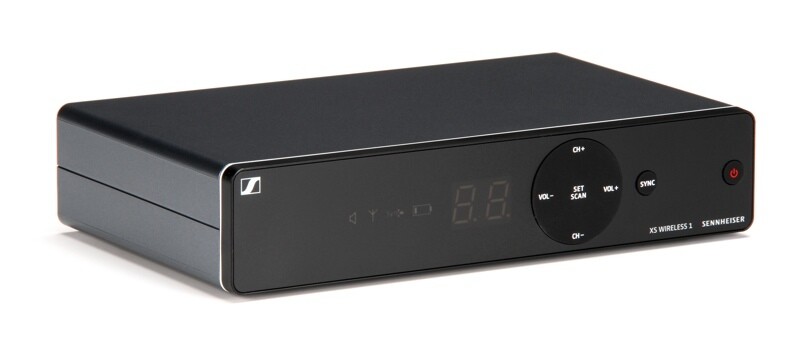

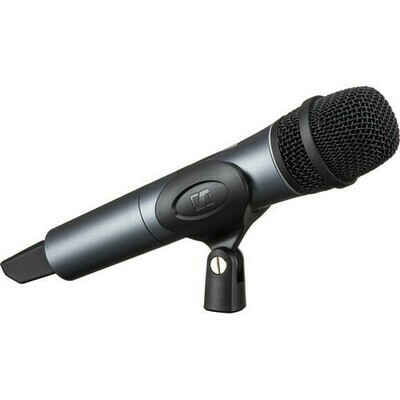

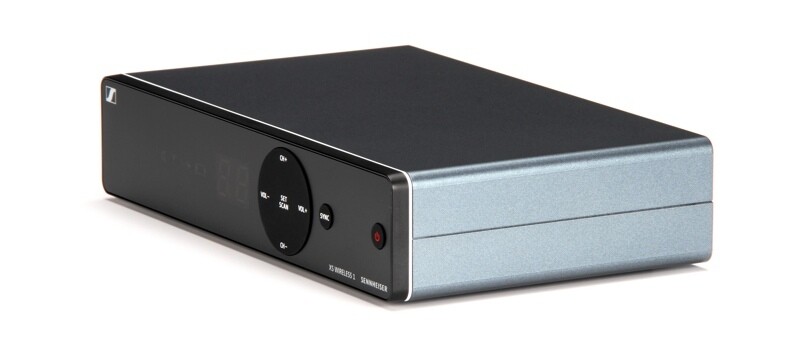

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
Featuring Sennheiser's renowned evolution microphone capsule e835
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Diversity reception
Sennheiser XSW 1-835 Specs
System
| Modulation | Wideband FM |
| Frequency Range | A: 548 to 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion | ≤ 0.9% |
| Temperature Range | Operation: 32 to 104°F (0 to +40°C) |
| Storage | -4 to 158°F (-20 to 70°C) |
| Transmitter Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |

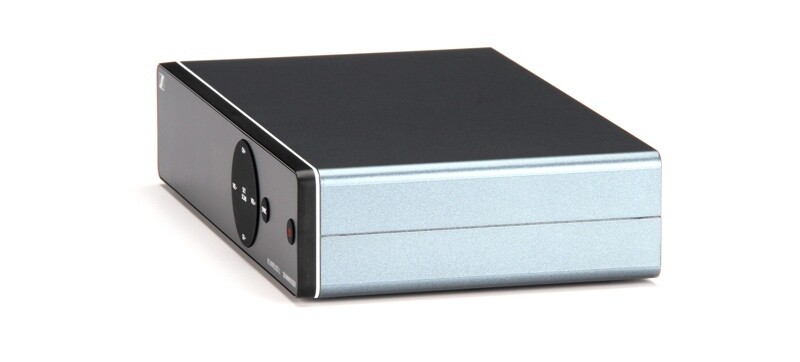

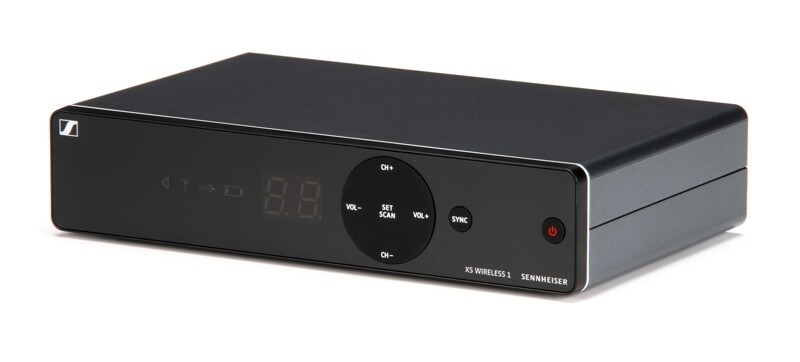

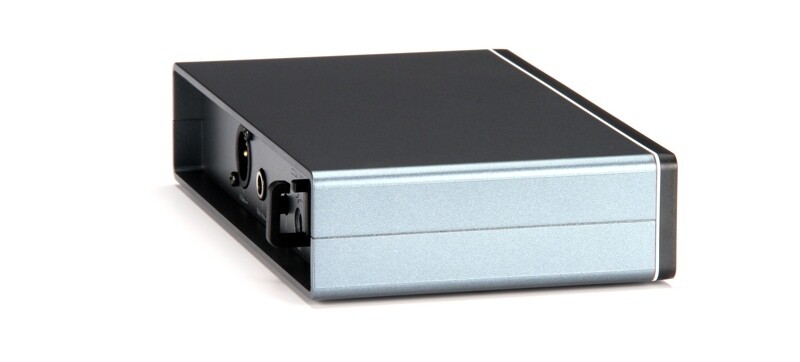

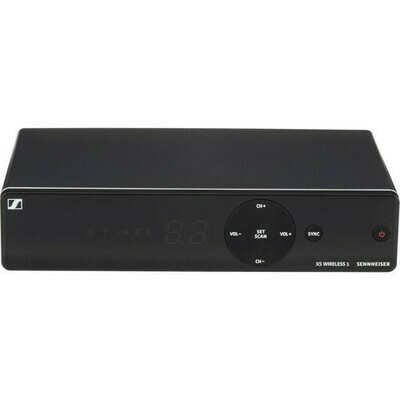

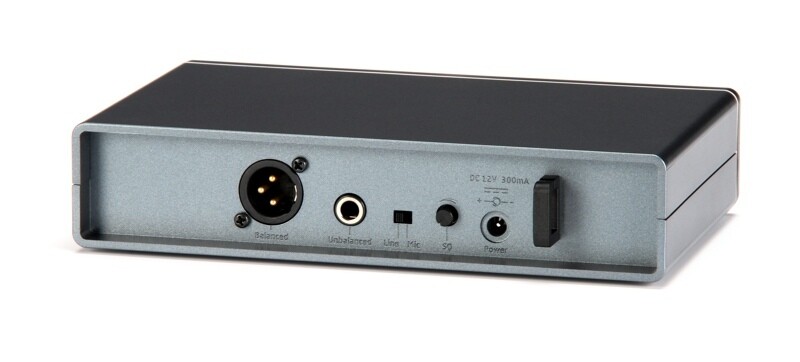

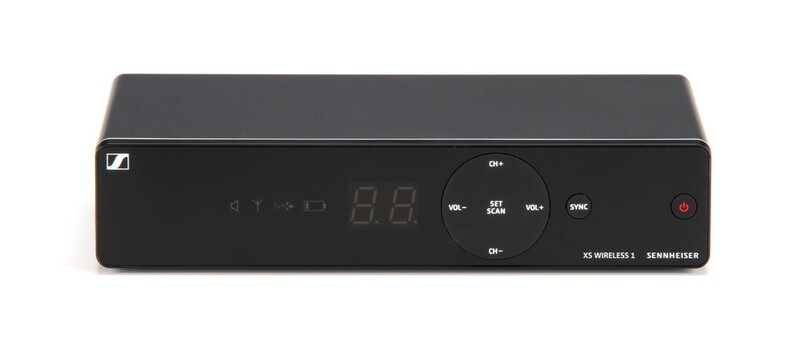

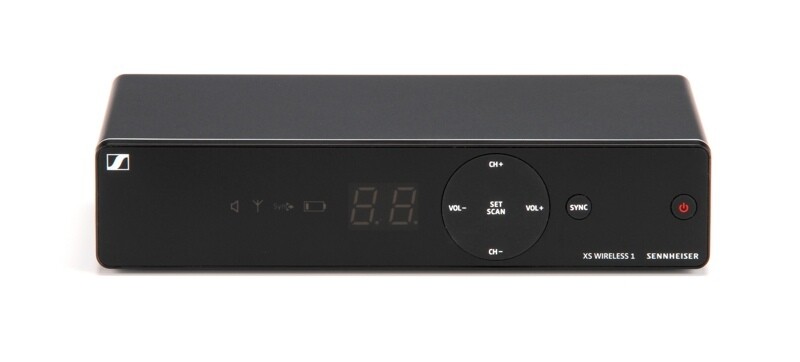

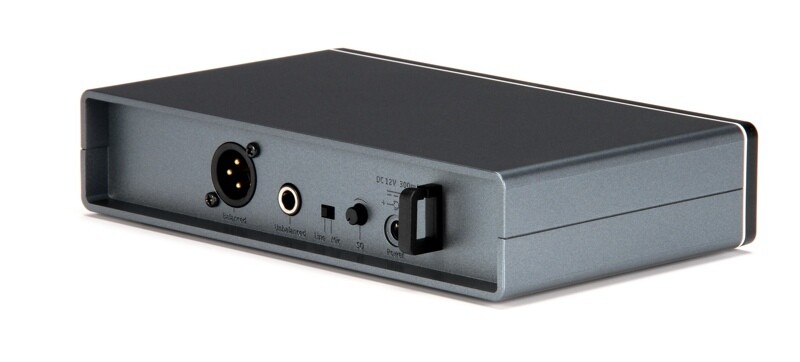

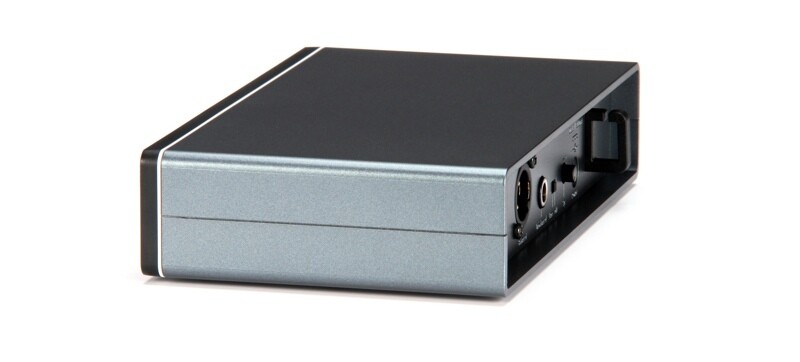

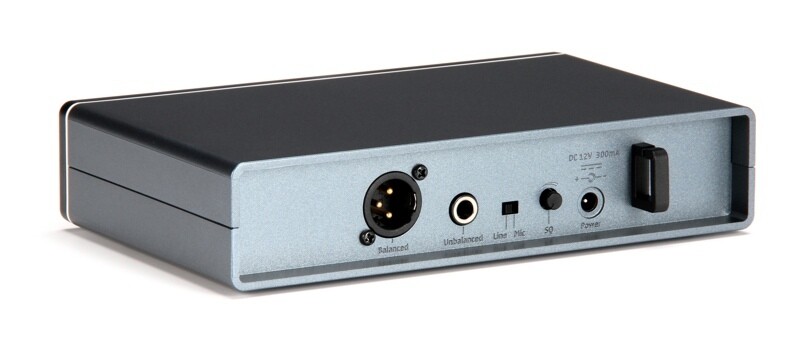

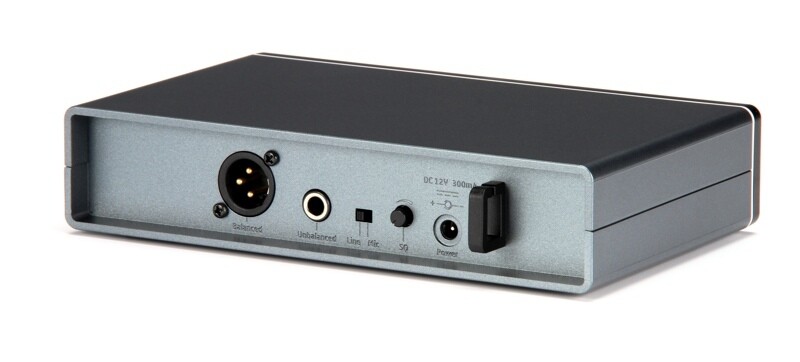

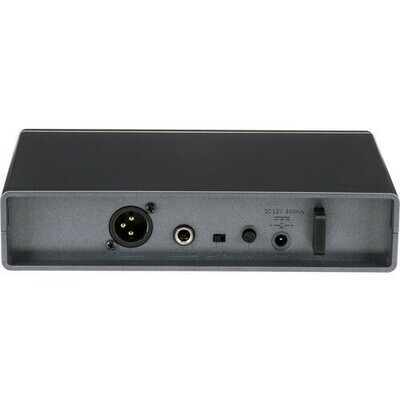

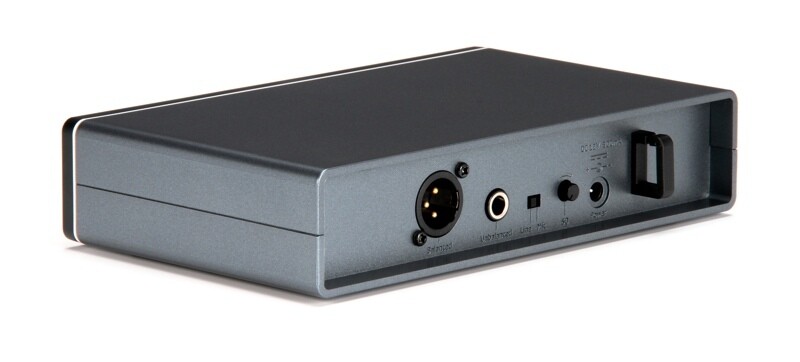

Receiver
| Principle | Double superheterodyne |
| Diversity | Antenna switching diversity via internal antennas |
| Sensitivity | < 3 μV at 52 dBA RMS S/N (at peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |

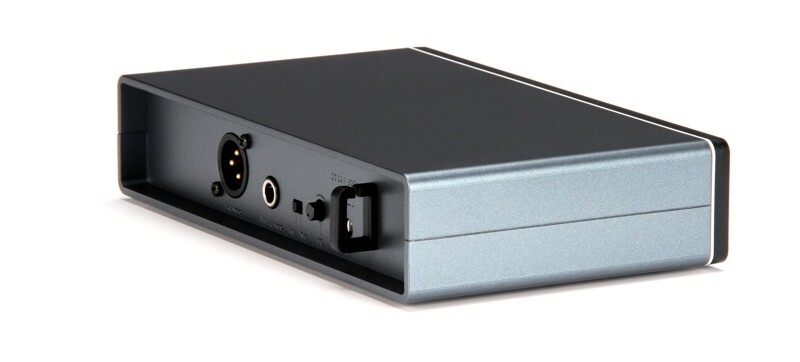

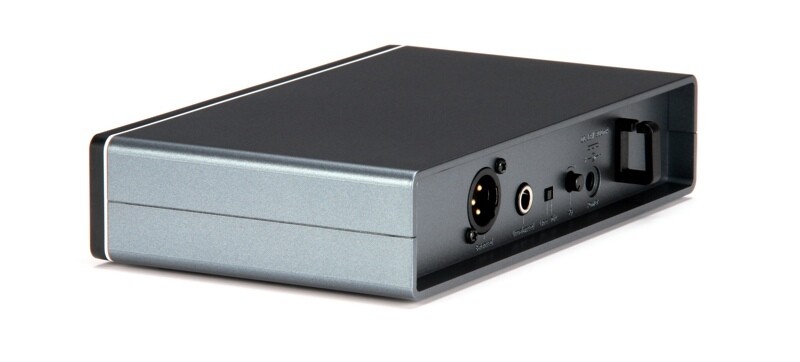

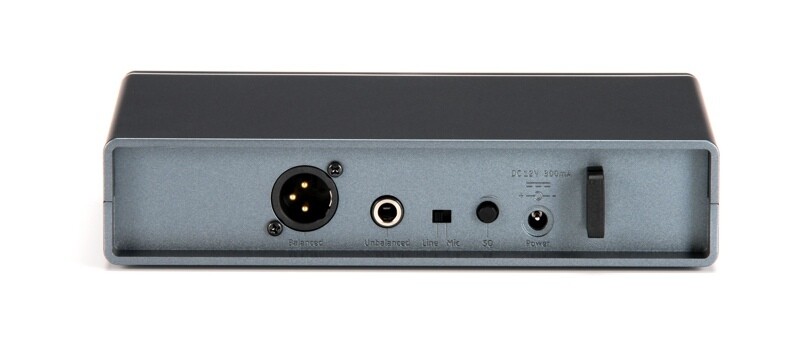

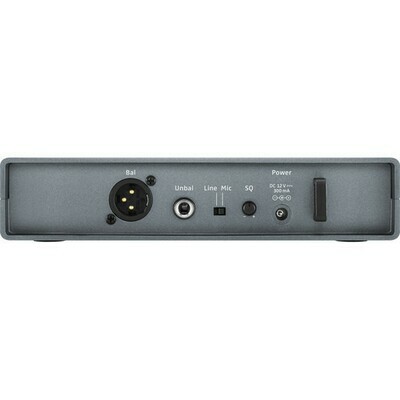

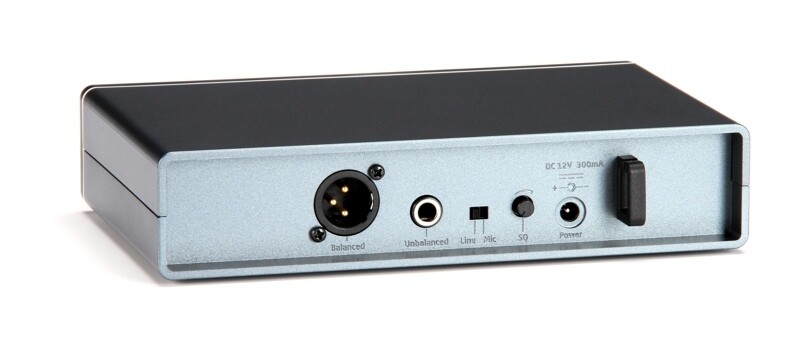

| Max Output Voltage | At Peak Deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu XLR Socket (balanced): +12 dBu |
| Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps |
| Power Supply | Nominal Input Voltage: 100 to 240 VAC Nominal Output Voltage: 12 VDC/300 mA |
| Squelch | Adjustable from 3 dB μV to 28 dB μV (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Material of Construction | ABS housing |
| Dimensions (W x H x D) | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) |
| Weight | 12 oz (340 g) |

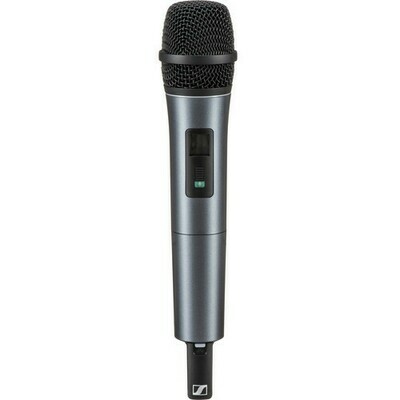

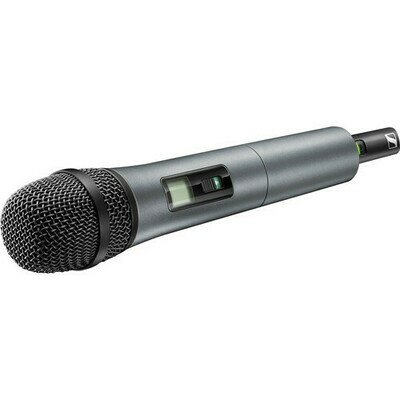

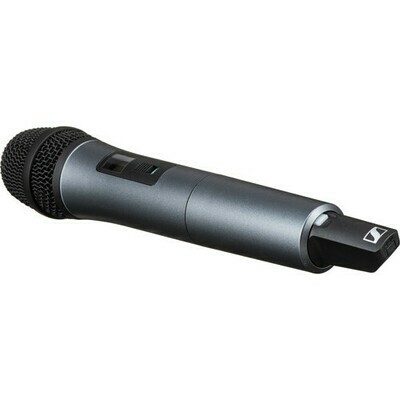

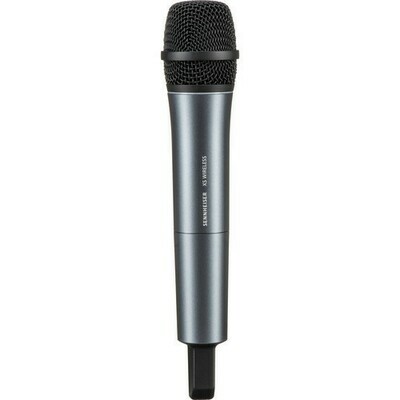

Microphone
| Output Power | 10 mW |
| Frequency Response | 80 Hz to 16 kHz |
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hrs. |
| Microphone Type | Dynamic |
| Polar Pattern | Cardioid |
| Input Sensitivity | Capsule: 1.5 mV/Pa |
| Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps |
| Material of Construction | Rugged ABS housing |
| Dimensions (L x Diam) | 10 x 2.0" (260 x 50 mm) |
| Weight | 8.6 oz (245 g) |
Packaging Info
| Package Weight | 3.08 lb |
| Box Dimensions (LxWxH) | 13.75 x 13.6 x 3.35" |
