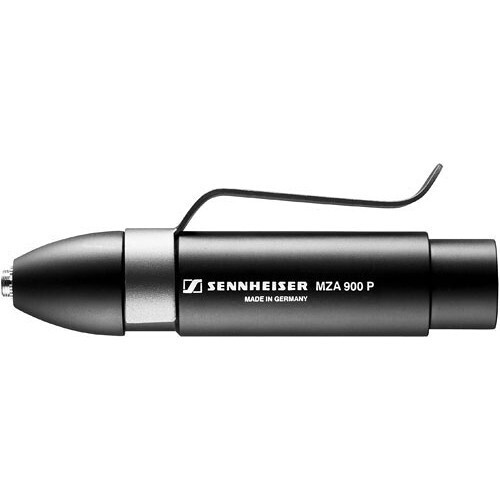

From Sennheiser, the MZA 900 P is an in-line power supply and preamplifier designed for use with pre polarized condenser microphones featuring a 1/8" (3.5mm) mini connection. The MZA 900 P effectively converts 48V phantom power and establishes a 3-pin XLR connection for the Sennheiser E 908B, E 908D, HSP 2, HSP 4, ME 2, ME 3, ME 4 and MKE 2 EW Gold microphones.
In-Line Power Supply and XLR Connection
Provides an XLR connection and converts phantom power to Sennheiser pre-polarized condenser microphones with a 3.5mm mini connection.
Wide Compatibility Range
Works with the Sennheiser E 908B, E 908D, HSP 2, HSP 4, ME 2, ME 3, ME 4 and MKE 2 EW Gold microphones.
Belt Clip
The attached belt clip enables easy mounting.
Sennheiser MZA900P Specs
| Frequency Response | 20Hz - 20kHz |
| Gain | 0/-12 dB |
| Output Voltage | 1.8V (P48), 0.6V (P12) @ 0dB gain |
| Output Impedance | 100 Ohm |
| Phantom Power | P12 - P48, 10 - 52V, 2.6 - 2,8mA |
| Operating Temperature | -20 - '60 degrees C |
| Dimensions | 0.86 x 3.93" (22 x 100mm) (Diameter x Length) |
| Weight | 60 g |
Packaging Info
| Package Weight | 0.31 lb |
| Box Dimensions (LxWxH) | 6.05 x 4.4 x 1.5" |
UPC: 615104101654
