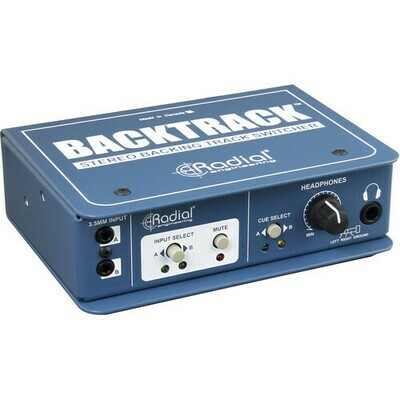

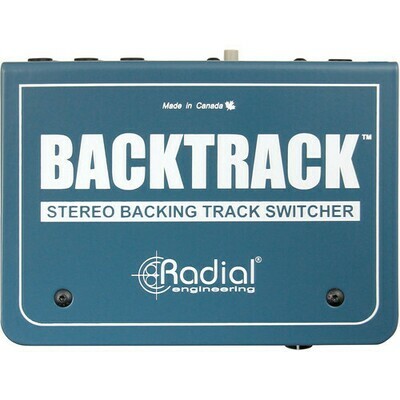

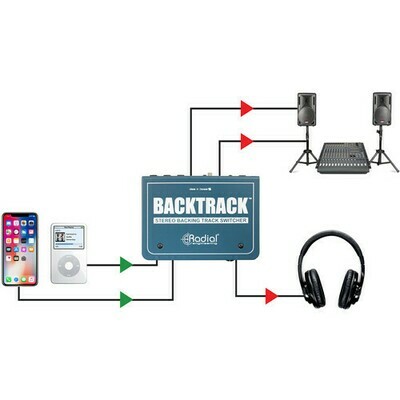

Designed for bands running backing tracks on stage, the Radial Engineering Backtrack is a stereo audio switcher. It provides two stereo input paths via 1/4" and 3.5mm connections, and handles audio from laptops, interfaces, MP3 players, or combinations of any compatible device.

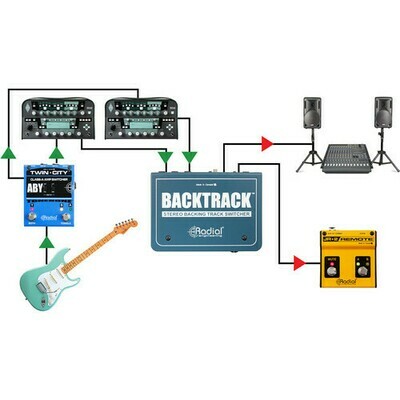

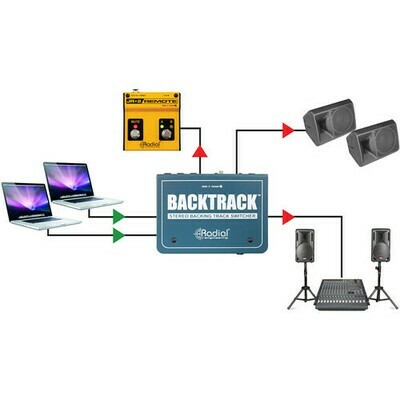

The Backtrack's dual-input function lets you switch between different musical loops in experimental contexts, though you can also use the unit to run a redundant backup loop; this is particularly useful if you want to minimize the risk of your backing track suddenly dropping out—a fear any musician can relate to at one time or another.

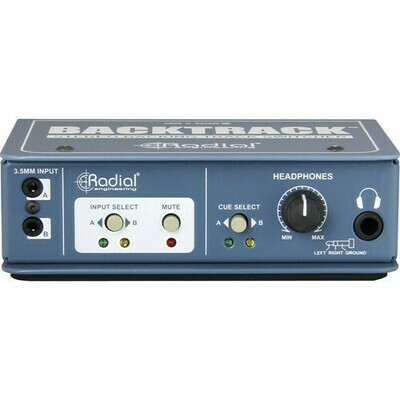

Once you've connected two audio sources to the Backtrack, you can switch between them, or mute them both as you please. Front panel controls are provided for this purpose, though you can also use a JR-2 remote footswitch, available separately.

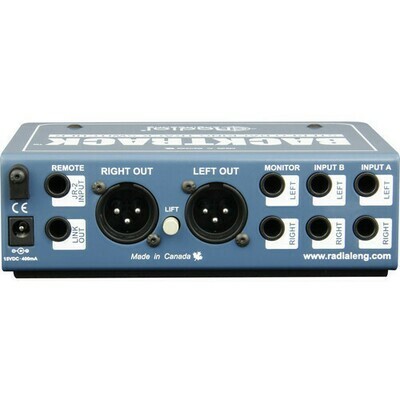

Level controls on the headphone output let you monitor either input whenever you wish, while a 1/4" monitor output can route sound to powered speakers. For the PA system, you'll find dual transformer-isolated XLR outputs, complete with a ground-lift switch to mitigate any noise, buzz, or hum often associated with ground loops.
Radial Engineering R800 8102 00 Specs
I/O | 2 x TRS 3.5 mm inputs, stereo 4 x 1/4" inputs, stereo pairs 1 x 1/4" Remote input 1 x 1/4" Headphone output, stereo 2 x 1/4" Speaker outputs 2 x XLR Outputs |
Controls | Select button Mute button Headphone select button Level knob (monitor) Level knob (line out) Level knob (headphones) |
Ground Lift | Switch on rear |
Remote | JR 2 Footswitch, available separately |
Frequency Response | 20 Hz to 20 kHz (±0.5 dB) |
THD | 0.007% @ 0 dBu, 1 kHz |
Noise Floor | -105 dBu |
Dynamic Range | > +130 dBu |
Maximum Input | > +25 dBu |
Intermodulation Distortion | 0.002% @ 0 dBu, 1 kHz |
CMMR | 34 dBu @ 60 Hz, 42 dBu @ 3 kHz |
Power Requirements | 15 VDC, 100 mA (power adapter included) |
Construction Material | 14-gauge steel chassis Finish: Powder Coat |
Dimensions | 4.6 x 5.9 x 1.9 / 11.7 x 15 x 4.8 cm |
Weight | 2.2 lb / 1 kg |
Package Weight | 3.4 lb |
Box Dimensions (LxWxH) | 11.7 x 4.9 x 2.7" |
