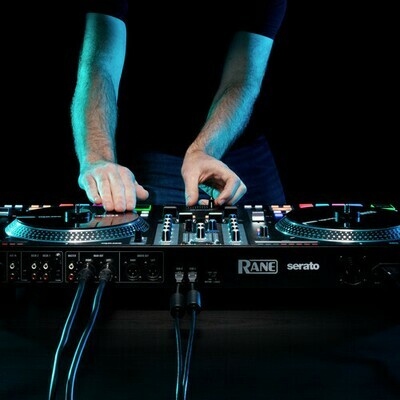

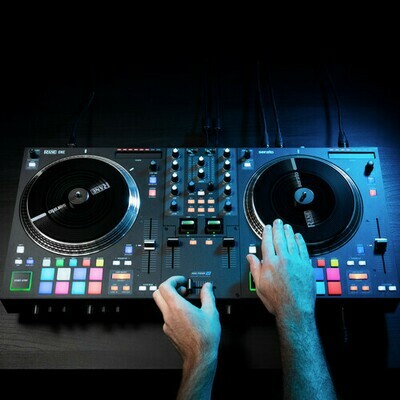

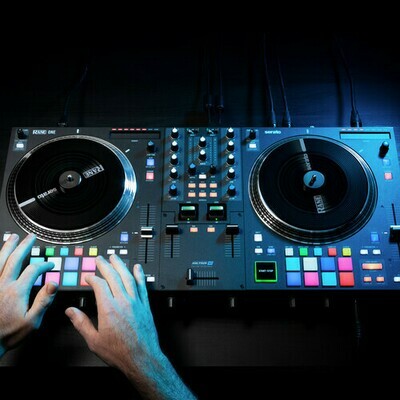

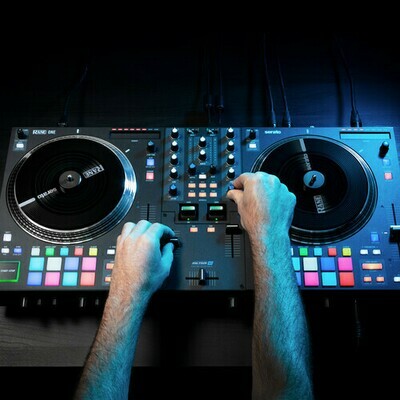

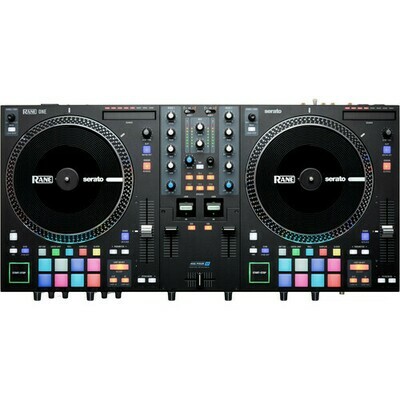

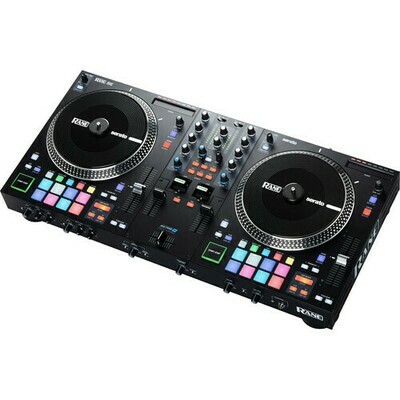

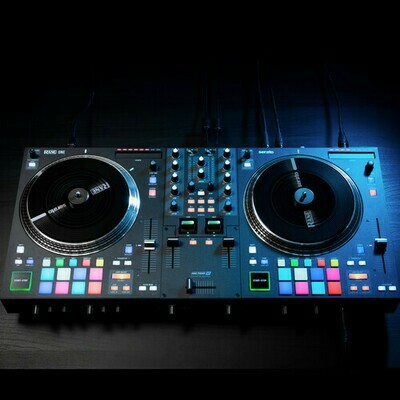

DJs and performing artists yearning for a professional motorized DJ controller will be thrilled by the RANE ONE, a complete DJ solution based around RANE's intuitive performance layout with full integration with the included Serato DJ Pro. The RANE ONE embodies all the trusted hallmarks of RANE's build quality and intricate DNA to bring the art of DJing in a digital world to a wider audience of DJs.

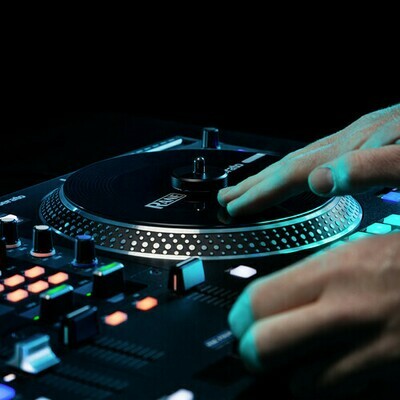

The ONE incorporates two 7.2" motorized turntable platters for a traditional vinyl feeling, complete with customizable (low/high) torque settings. The unit provides an authentic, tactile control over your music and performance with the foundation art of DJing at its very core, including a traditional turntable plunger style start/stop button.
Other notable features include 8 multicolor velocity-sensitive performance pads per deck, each assignable to Hot Cues, Saved Loops, Roll, Sampler, Slicer, and Serato's Scratch Bank feature. There are six radio-style FX buttons, which can be activated in any combination. Each channel offers a 3-band dynamic EQ and high/low pass filters, as well as dedicated loop controls.
Benefits
At a Glance
- 7.2" motorized platters with quick-release acrylic disks
- Trusted RANE build quality and feel
- Instant access software FX with two metal FX paddles

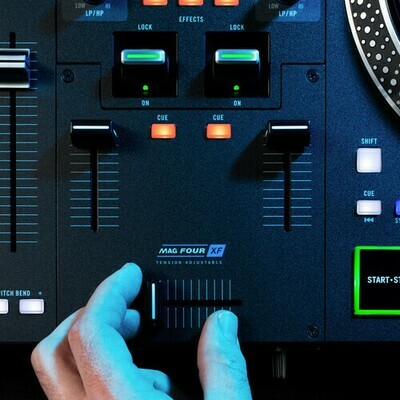

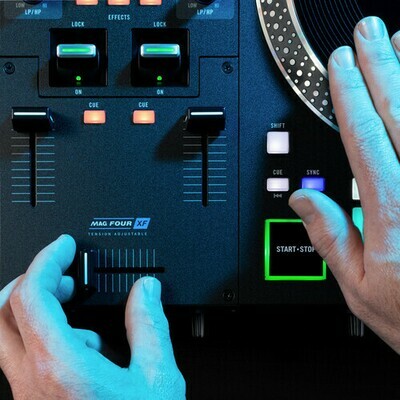

- Ultralight MAG FOUR crossfader
- High/low-pass filter and 3-band EQ
- Dedicated loop Controls
- Independent multimode performance pads including Serato Scratch Banks

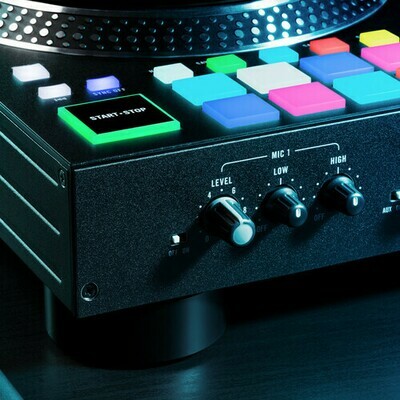

- Turntable style start/stop

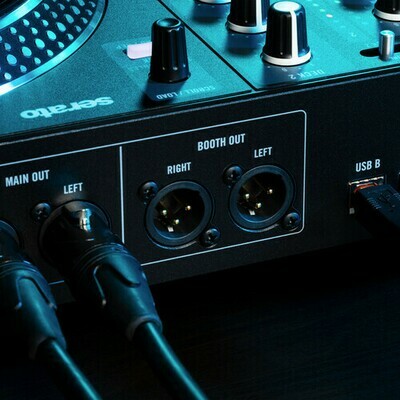

- XLR main and booth outputs
- Two line/phono inputs
- Two TRS/XLR microphone inputs
- Two USB computer connections
- Portable DJ controller
- Serato DJ Pro Included (paid upgrade to Serato DVS)

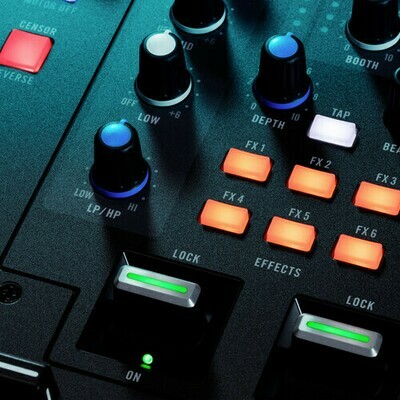

Control and Effects

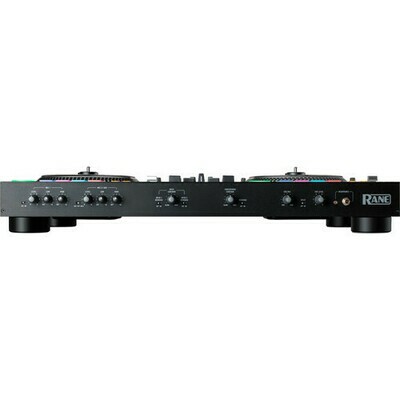

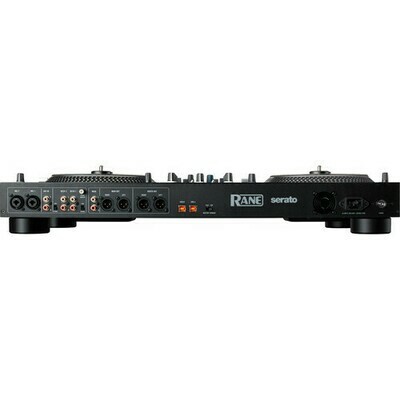

Connections
Precision Cuts

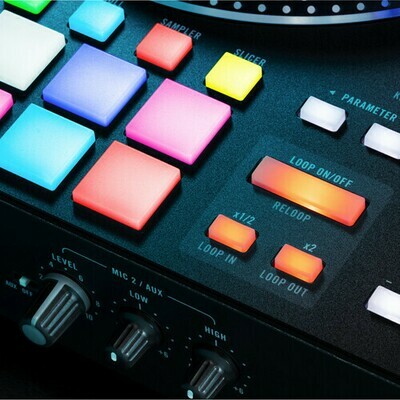

Dedicated Loop
RANE DJ ONE Specs
| Configuration | Dual-Deck |
| Number of Channels | 2 x Stereo |
| Platter/Jog Wheel | 2 x 7.2" / 18.3 cm Touch-Sensitive |
| Faders | 2 x Channel Level 2 x Pitch 1 x Crossfader |
| Display | None |
| Sample Pads | 8 x Assignable per Deck (Velocity-Sensitive) |
| EQ | 2 x Channel EQ: Hi Mid Low |
| Performance Controls | BPM Counter, Beat Sync, Brake, Cues, EQ, Echo, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Master Tempo, Pitch Bend, Pitch Control, Reverse, Sampler, Scratch, Search, Transport Controls, Vinyl Mode |
| Built-In Effects | None |
| Sample Rates | 48 kHz (AD/DA Conversion) |
| Bit Depths | 24-Bit (AD/DA Conversion) |
| Audio Inputs | 2 x Combo XLR-1/4" 3-Pin Balanced Mic Input 2 x Stereo RCA TS Unbalanced Line/Phono Input 1 x Stereo RCA TS Unbalanced Aux Input |
| Audio Outputs | 4 x XLR 3-Pin Balanced Booth/Master Output 1 x Stereo RCA TS Unbalanced Master Output 1 x 1/4" TRS Headphone Output 1 x 1/8" / 3.5 mm TRS Headphone Output |
| USB | 2 x USB Type-B (USB 2.0, Host Connection) |
| Wireless Connectivity | None |
| Media Card Slots | None |
| Internal Drive Bays | None |
| Input Level | XLR Mic: 110 mV Stereo RCA Aux/CD: 4 Vrms Stereo RCA Phono: 106 mV (RIAA) |
| Output Level | XLR Booth/Master: 8 Vrms Stereo RCA Master: 4 Vrms Headphone: 108 dB |
| Headphone Output Power | 1/4": 50 mW per Channel into 50 Ohms 1/8" / 3.5 mm: 50 mW per Channel into 50 Ohms |
| Dynamic Range | AD/DA Conversion: 113 dB Stereo RCA Line: 110 dB System: 113 dB |
| THD+N | Stereo RCA Aux/CD/Line/Master: 0.004% |
| Included Software | Serato DJ Pro |
| Compatible Software (Not Included) | Serato DJ DVS |
| Power Requirements | AC Input |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | IEC Input |
| Power Consumption | 50 W |
| Dimensions (W x D x H) | 26.5 x 13.6 x 4.9" / 673.1 x 345.4 x 124.5 mm |
| Weight | 23.55 lb / 10.68 kg |
| Package Weight | 34.51 lb |
| Box Dimensions (LxWxH) | 32.38 x 18.75 x 11" |
