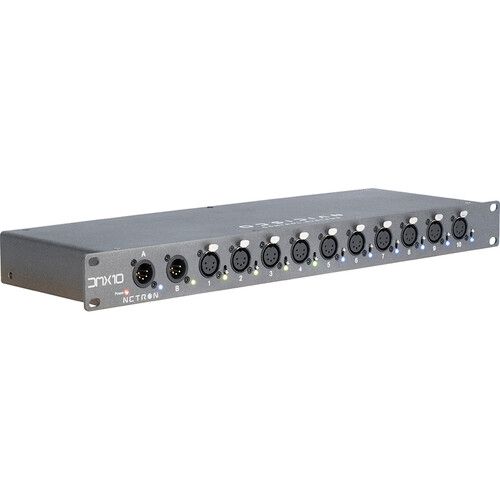

The Elation Professional Netron DMX10-5 Rackmount 10-Port DMX Splitter has dual inputs and freely assignable 5-pin XLR DMX outputs. Utilizing long-life toggle switches, every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The Netron DMX10 is made from a rugged metal chassis featuring impact-resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication, and it is available in 5- and 3-pin XLR configurations.
Benefits
- Dual A/B 5-pin XLR DMX input
- Ten isolated 5-pin XLR DMX outputs
- A/B routing per output port
- LED feedback for in/out/A/B/power
- Industrial-strength powder-coated finish
- Lightweight and rugged rackmount housing
Obsidian DMX10-5 Specs
Key Specs
| Inputs/Outputs |
10 x 5-Pin (DMX) Female Output
|
| Channels |
10 (DMX)
|
| Power Source |
AC Adapter
|
General
| Inputs/Outputs |
10 x 5-Pin (DMX) Female Output
|
| Channels |
10 (DMX)
|
Power
| Power Source |
AC Adapter
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Environmental
| Certifications |
CE, cETLus
*as per Manufacturer |
Physical
| Material of Construction |
Metal
|
| Rack Mount |
Yes
|
| Cable Length |
4.9' / 1.5 m
|
| Dimensions |
19.0 x 6.1 x 1.7" / 482.0 x 156.0 x 44.0 mm
|
| Weight |
3.3 lb / 1.5 kg
|
Packaging Info
| Package Weight |
4.58 lb
|
| Box Dimensions (LxWxH) |
20.4 x 9.6 x 3.9"
|
