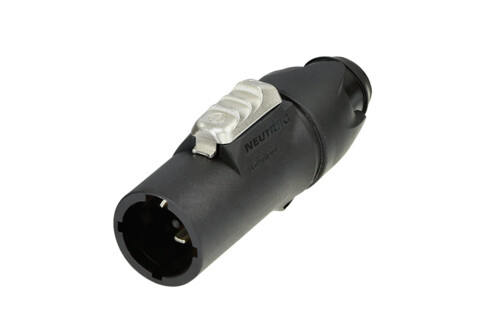

Featuring heavy-duty, sealed construction and a weatherproof IP65 rating, the powerCON TRUE1 TOP Locking Male Cable Connector from Neutrik replaces appliance couplers in applications where a robust solution is needed, such as outdoor use. This powerCON TRUE1 TOP connector offers breaking capacity (CBC), meaning that it can be connected or disconnected under a load or live.
Benefits
Neutrik NAC3MX-W-TOP Specs
Interface
| Connector 1 | 1 x PowerCON |
| Connector 2 | Bare Ends |
Electrical
| Maximum Voltage | 250 V |
| Current | 20 A |
| Contact Resistance | 3Ohms |
| Dielectric Strength | 4 kVDC / 2.8 kVAC |
| Contact Plating | 2 µ Silver |
| Contact Material | Bronze |
| Wire Gauge | 12 AWG |
| Minimum Insulation Resistance | 0.1 GOhms |
General
| Cable Length | None |
| IP Rating | IP65 |
Environmental
| Certifications | ENEC, UL, cUL, as per Manufacturer |
| Operating Temperature | -22 to 176°F / -30 to 80°C |
Packaging Info
| Package Weight | 0.08 lb |
| Box Dimensions (LxWxH) | 3.85 x 2.2 x 1.55" |
