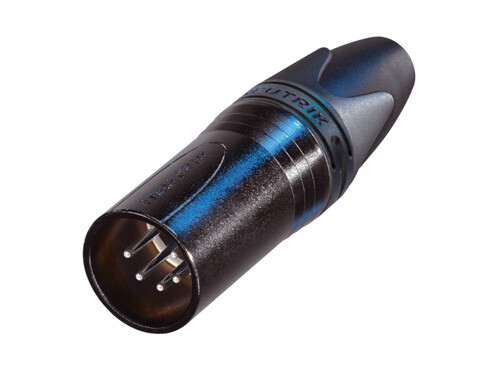

Neutrik NC5MXX-BAG 5-pin XLRM Cable Connector, Black MFR #NC5MXX-BAG

Home/Pro Audio | Visual | Lighting | Truss/Live Sound/Connectors

Product Details

Brand: NEUTRIK

Neutrik's NC5MXX-BAG is an XX Series 5-pole male cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Neutrik NC5MXX-BAG Features:

Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification (sold separately)
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, long lasting and dependable
Internal thread on shell is well protected against any damage
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NC5MXX-BAG Specifications:

Electrical Specifications:
- Capacitance between contacts: = 7 pF
- Contact resistance: = 3 mOhms (inner)
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 GOhms (initial)
- Rated current per contact: 7.5 A
- Rated voltage: 50 V
Mechanical Specifications:
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: = 20 N
- Withdrawal force: = 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 1.0 mm²
- Wiresize: max. 18 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
Material Specifications:
- Boot: Polyurethane
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black Chromium
Environmental Specifications:
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30°C to +80°C
