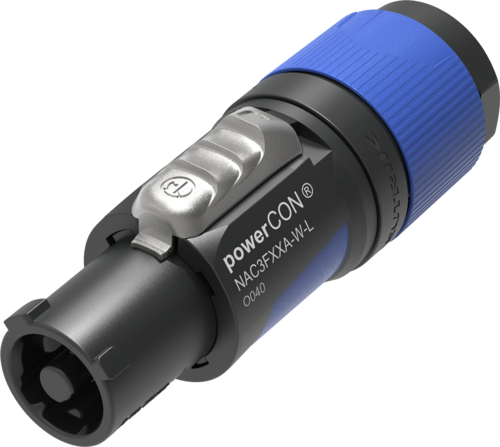

Name: Neutrik NAC3FXXA-W-L powerCON Cable Connector AC Power Cable Connector with Color-coded Twist-lock Mechanism for 10-16mm Diameters
SKU: Neutrik NAC3FXXA-W-L
Price: 11.91 USD
Availability: InStock

Our Team goes above and beyond expectations to deliver amazing service – that’s what doing the right thing means to us. Orin Orun AVL is committed to always giving more to our customers, our employees, and our community.

Product Overview

The Neutrik powerCON FXXA/FXXB is a single-phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. This connector is keyed and color-coded blue for power in. It is designed for appliance couplers where a very rugged solution in combination with a locking device is required to guarantee a safe power connection. This connector is compatible with cable diameters between 10-16 mm.

Neutrik NAC3FXXA-W-L Features:

IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
Ergonomic design with slip-proof two-component molded housing
Power-in (blue) and power-out (grey) versions with diﬀerent keying to avoid the possibility of intermating
NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
NEUTRIK quality standard, extremely robust and reliable
Easy and reliable twist lock system
Improved kink protection by two-component bushing

Neutrik NAC3FXXA-W-L Specifications:

Electrical
- Contact resistance : ≤ 2 mΩ
- Dielectric strength: > 3 kVac (after mating cycles)
- Insulation resistance: > 10 GΩ (initially)
- Number of electrical contacts: 2 + PE
- Rating Europe: EN 60320-1: 16 A 250 V AC, CBC
- Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, CBC
Mechanical
- Cable O.D.: 10 -16 mm
- Lifetime: Typically 5’000 mating cycles
- Wiresize (mm²): 1.5 – 2.5 mm²
- Wiresize (AWG): 16 – 12 AWG
- Locking device: Twist lock
- Termination: Screw type terminals
Material
- Contact plating: Ag
- Contacts: Copper Alloy
- Insert: Polyamide (PA6.6)
- Locking element: Zinc diecast
- Shell: Polyamide (PA6) / TPE
- Strain relief: Polyketone
- Bushing: Polypropylene / TPE
Environmental
- Temperature range: -33 °C to +80 °C
- Protection class: IP20
- Flammability acc. to UL94: V-0
