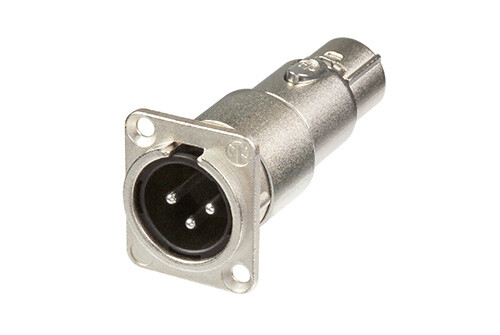

The NA3MDF XLR Male to Female Feedthrough Adapter for Panel Mount from Neutrik is designed specifically for the kinds of wall panels often utilized in studios and on stage. It features a zinc diecast chassis and a steel-element latch-locking device. This adapter offers a 3-pin XLR male on the panel side and a 3-pin XLR female on the back side.
Neutrik NA3MDF Specs
Connector 1 | 1 x Lockable 3-Pin XLR Male |
Connector 2 | 1 x Lockable 3-Pin XLR Female |
Connector Plating | Nickel, Silver |
Shell Plating | Nickel |
Wire Gauge | 14 AWG |
Minimum Contact Resistance | 5 MOhms |
Minimum Insulation Resistance | 2 GOhms |
Maximum Current | 16 A |
IP Rating | IP40 |
Insertion/Removal Cycles | 1,000,000 |
Package Weight | 0.15 lb |
Box Dimensions (LxWxH) | 2.1 x 1.7 x 0.9" |
