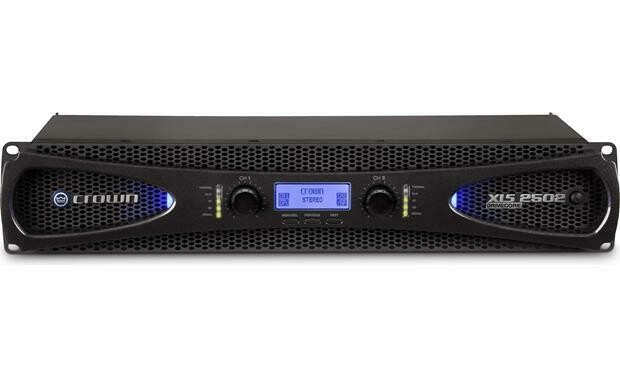

The Crown XLS 2502 Stereo Power Amplifier offers 775W at 4 Ohm in a lightweight chassis using the company's ultra-efficient DriveCore Class D amplification platform. The amplifier includes built-in DSP with a dedicated band pass filter per channel, an integrated PureBand Crossover System, and Peakx Limiters to provide maximum output while protecting your speakers.
For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or 0.775 Vrms. Outputs are provided on both speakON and binding post connectors.
You can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off.
Crown Audio XLS2502 Specs
| Number of Channels | 2 |
| Power Rating | 2 Ohms: 1200 W per Channel 4 Ohms: 775 W per Channel 2400 W Bridged 8 Ohms: 440 W per Channel 1550 W Bridged |
| Frequency Response | 20 Hz to 20 kHz +0/-1 dB (at 1 W) |
| Damping Factor | >200 |
| Input Sensitivity | 1.4 Vrms |
| SNR | >103 dB |
| THD | <0.5% |
| Intermodulation Distortion | <0.3% |
| Crosstalk | >85 dB (at 1 khz) >55 dB (at 20 kHz) |
| I/O | 2 x XLR Input 1 x 2RCA Input 2 x 1/4" Thru 2 x Binding Post Pair Output 2 x speakON NL4 Output |
| Dimensions | 19.0 x 3.5 x 10.7" / 48.3 x 8.9 x 27.2 cm |
| Weight | 10.8 lb / 4.9 kg |
| Package Weight | 14.55 lb |
| Box Dimensions (LxWxH) | 21.6 x 14.6 x 6.1" |
