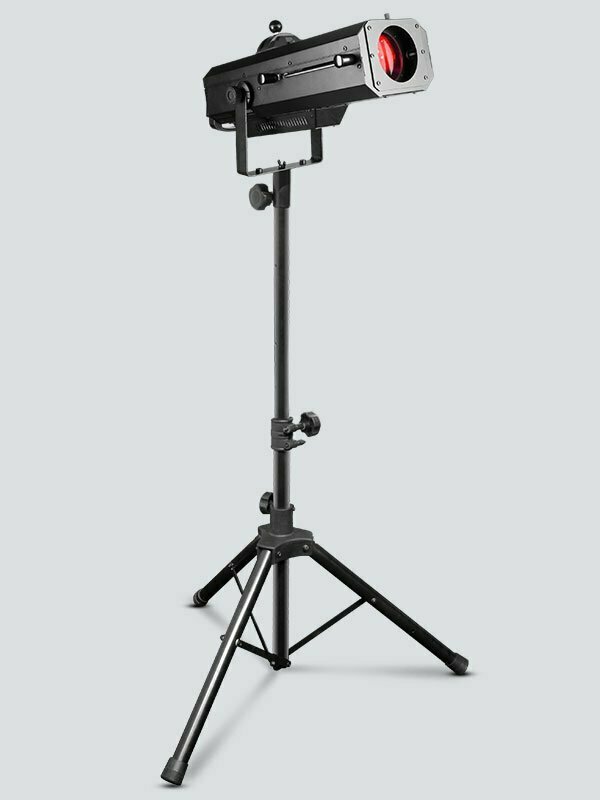

The LED Followspot 120ST Fixture features a built-in dimmer and DMX control. It is primarily designed for use in theater lighting but can also be used in film and video production. Dimming, color adjustment, strobe, and shutter open/closed can be controlled locally with buttons on the back of the fixture or remotely via DMX. A manually controlled iris allows you to change the beam angle to 5°.
Eight color-selection buttons on the back of the fixture enable you to change the color of the light from cool white, to warm white, orange, cyan, purple, green, red, and light blue. This can be done locally or via DMX control. A built-in shutter control is for turning the light on or off on cue, and you can also set the fixture to strobe up to 16 times a second. A three-digit alpha-numeric display shows "NAn" in manual mode and "001" for DMX mode. The fixture is fuse protected and comes fitted with a yoke that mounts the light to the included stand.
CHAUVET DJ LED Followspot 120ST Specs
Light Source | 1 x cool white LED; 120 W, 30.6 A |
Life Expectancy | 50,000 hours |
Illuminance | 14°: 16,060 lux @ 6.6' / 2.0 m 20°: 7,900 lux @ 6.6' / 2.0 m |
Colors | 7 x Colors: orange, cyan, red, green, magenta, yellow, and white (warm or cool) |
Zoom Angle | 14 to 20° (manual zoom) |
Iris | 5° at tightest zoom |
Focus | Manual |
Strobe Rate | 0 to 16 Hz |
Dimming | Local and DMX dimming |
DMX Connectors | Input: XLR 3-pin Output: XLR 3-pin |
DMX Channel Modes | 1 x Mode: 3 channels |
Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
Power Connectors | Input: IEC |
Power Consumption | 185 W, 1.5 A @ 120 V, 60 Hz 176 W, 0.8 A @ 230 V, 50 Hz |
Fuse | 3 A, 250 V |
Approvals | CE |
Dimensions | 22.9 x 11.0 x 13.4" / 582 x 279 x 341 mm |
Package Weight | 33 lb |
Box Dimensions (LxWxH) | 27 x 19 x 15" |
