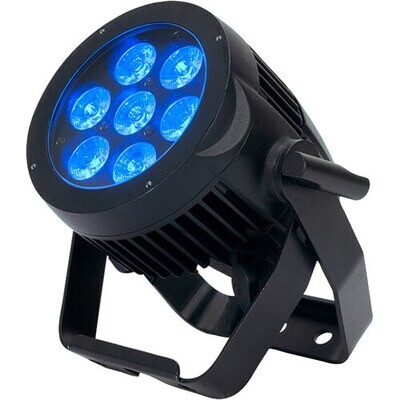

American DJ 7P HEX IP Heavy-Duty RGBAW+UV LED Wash Light (IP65)

Home/Pro Audio | Visual | Lighting | Truss/Lighting/American DJ

Product Details

Lighting designers and event coordinators in need of a quality, weatherproof wash fixture will be impressed with the American DJ 7P HEX IP, a heavy-duty RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED PAR fixture designed to produce a wide variety of bright color washes with smooth color mixing for use in a variety of applications including touring, event production, and hire situations where equipment is continually transported, rigged, and derigged. The fixture is rated IP65, allowing the unit to be safe from rain, snow, and dust.

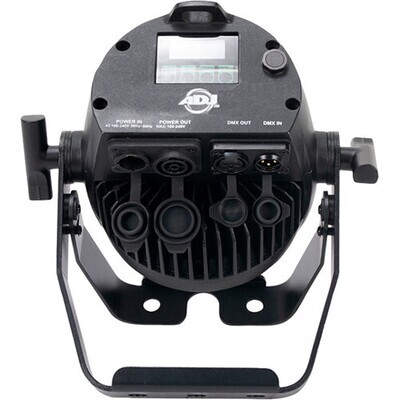

Equipped with seven 12W (6-in-1) HEX LEDs that have a beam angle of 30°, it can be used to create wide washes of amber-infused white light at varying color temperatures, vibrant colors such as hot pinks, lime greens, and electric blues, or the classic UV glow for venue uplighting and heat-free illumination to stage performers. Featuring all-metal construction, the heavy-duty enclosure offers side-accessible power and DMX in/out sockets, allowing the 7P HEX IP to sit directly on the ground or inside a truss without the scissor yoke, ideal for architectural wall washing.

Outdoor rated (IP65)
12W HEX (6-in-1) RGBAW+UV LEDs
63 color macros
powerCON True 1 IP-rated in/out power connections
Remote Device Management (RDM)
Operational modes: Static Color, Sound-Active, RGBAW + UV Dimmer, Program, and DMX
Color strobe
0 to 100% electronic dimming
DMX modes: 6, 6+, 9, 9+, and 12 channels
Flicker-free operation for video applications
Auto-sensing power supply.
Daisy-chain power for up to 16 units at 120V, or 34 units at 240V
Includes IP-rated power cord
Includes scissor yoke to create a variable-angle floor stand or for conventional mounting

American DJ 7P HEX IP Specs

Light

Light Type	PAR
Light Source	7 x Color/UV LED - 12 W
Light Source Life Expectancy	50,000 Hours
Colors	Red Green Blue Amber White Ultraviolet
Beam Angle	30°
Shutter / Strobe	Electronic
Dimming	Electronic, 0 to 100% with 5 Dimmer Modes

Performance

Operating Modes	Color Dimmer, DMX, Program, Sound-Active, Static Color
Macros / Programs	63 x Color Macro
Effects	Pulse Strobe
Gobos	None

Control

Control Protocols	DMX512, RDM
DMX Channel Modes	6 Mode(s): 6 / 6+ / 9 / 9+ / 10 / 12-Channel
Display / Controls	LED / 4-Button
Remote Control	None

Connectivity

I/O	1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output

Power

AC Input Power	100 to 240 VAC, 50/60 Hz
AC Power Connector	Input: 1 x powerCON TRUE1 Output: 1 x powerCON TRUE1
Power / Current Consumption	63.1 W (Max)
Power Linking	16 Units at 120 VAC 34 Units at 240 VAC

Environmental

IP Rating

IP65

Physical

Mounting	Dual/Scissor Yoke
Duty Cycle	None
Exterior Color	Black
Dimensions	10 x 6.5 x 9.3" / 25.4 x 16.5 x 23.5 cm
Weight	7.5 lb / 3.4 kg

Packaging Info

Package Weight	9.6 lb
Box Dimensions (LxWxH)	12.8 x 12.7 x 8.9"
