Allen & Heath Avantis 64-channel Digital Mixer

Home/Pro Audio | Visual | Lighting | Truss/Live Sound/Mixing Consoles/Digital Mixing Consoles/Allen & Heath

Product Details

Brand: ALLEN & HEATH

IT'S A SMALL STEP TO A GIANT LEAP

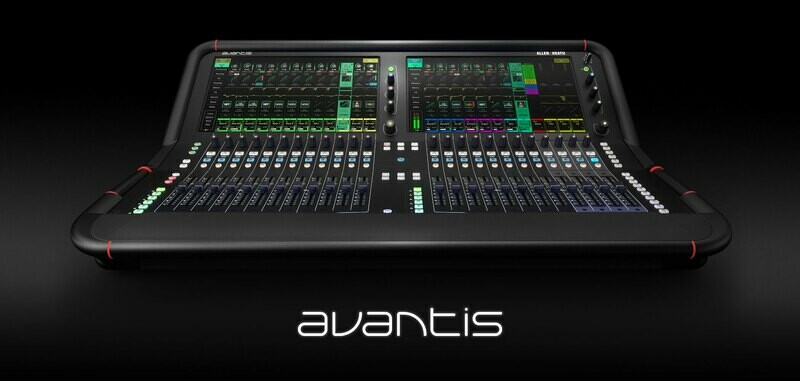

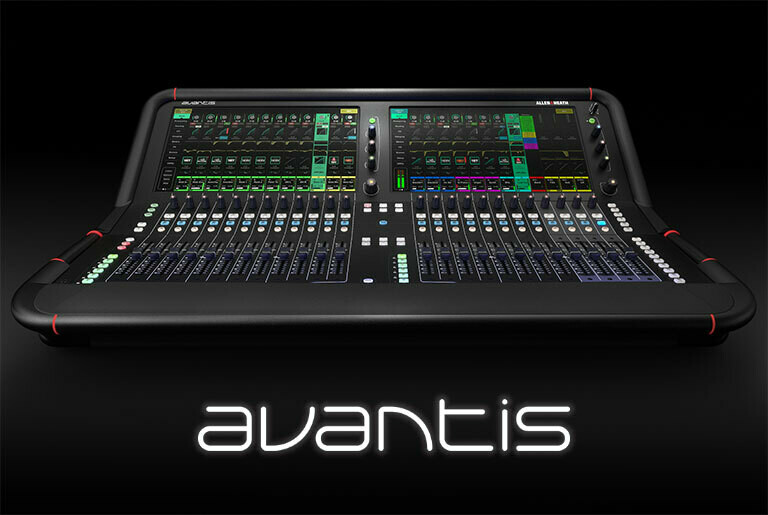

The third mixer based on our 96kHz XCVI FPGA engine, Avantis puts all our next-generation technology in a 64 channel / 42 configurable bus console, with dual Full HD touchscreens, a super-flexible workflow with Continuity UI, extensive I/O options, add-on processing from our flagship dLive mixing system, and a rugged full metal chassis.

Step up to Avantis. Leap ahead of the curve.

96kHz / 64 CHANNEL / 42 BUS DIGITAL MIXER
FULLY CONFIGURABLE MIX ARCHITECTURE
XCVI CORE - 0.7MS LATENCY / PHASE COHERENT
DUAL FULL HD TOUCHSCREENS WITH CONTINUITY UI
EVERYTHING I/O - HUGE RANGE OF REMOTE EXPANDERS
dPACK UPGRADE FOR ADDITIONAL dLIVE PROCESSING
SUPER STRONG, LIGHTWEIGHT FULL METAL CHASSIS

CONTINUITY UI

It's your mixer so mix your way.

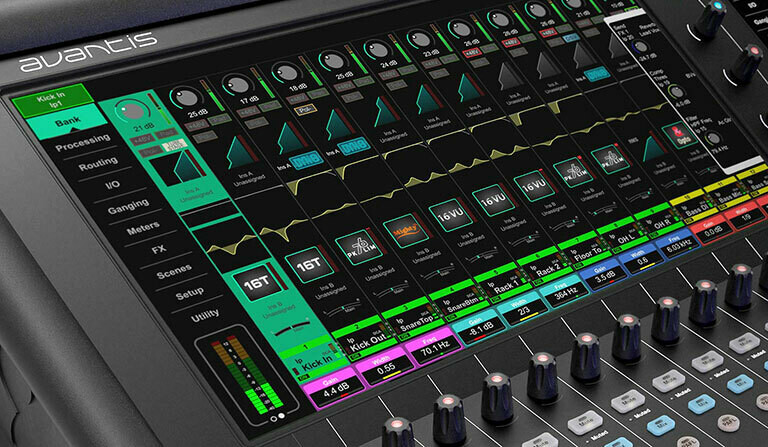

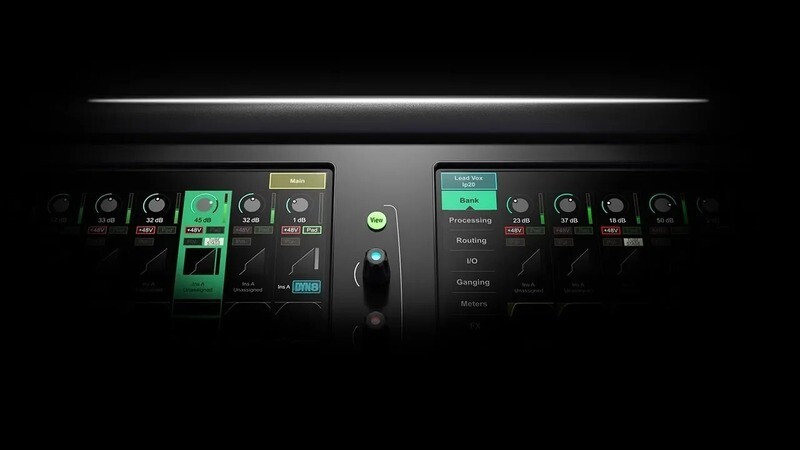

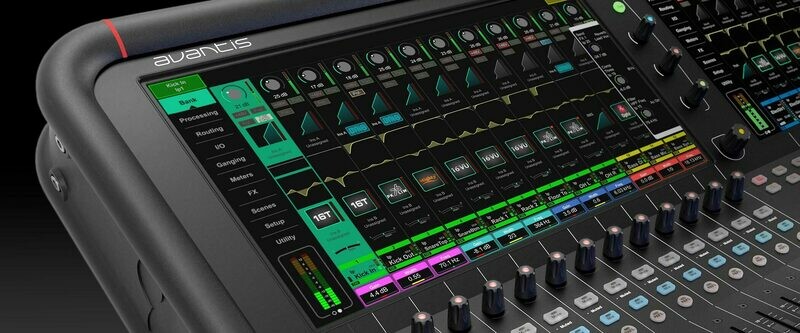

With a massive 206 square inches of screen space operating at a crisp 1080p Full HD resolution, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the displays.

The faders react on touch to immediately highlight the active channels for instant visual feedback.

The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank.

Each screen also features a FastGrab tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel.

The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.

EVERYTHING I/O

A complete ecosystem of remote expanders.

Whether you’re an owner/operator looking to build a compact system, or a rental company with existing Allen & Heath stock, the SLink connection on Avantis allows true flexibility by connecting to the entire range of Allen & Heath audio expander hardware.

Add a Dante card to your system and you’ve got even more options, with our dedicated Dante expanders, DT168 and DT164-W.

GX4816 - THE PERFECT PARTNER I/O

48 XLR Input / 16 XLR Output - 96kHz

GX4816 is a 96kHz audio expander that provides high-input-count remote expansion that makes it the ideal I/O expander for Avantis.

Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket.

DX012 - GET MORE OUT OF YOUR SYSTEM

12 Configurable Outputs - Switchable Analogue/AES - 96kHz

Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor.

Each DX012 provides 12 XLR outputs, configurable as:

12 analogue line outputs
8 analogue line outputs + 4 stereo AES outputs

4 analogue line outputs + 8 stereo AES outputs

Right out of the box, Avantis is loaded with powerful processing tools that will easily meet the demands of most users and applications. Want more options? Upgrade your console with Avantis dPack to get additional dLive processing including Dyn8 (up to 16 instances), DEEP Compressors, and the Dual Stage Valve Preamp, plus more models as they’re added.

dPACK - DEEP

Trusted by platinum selling artists on sellout tours, DEEP puts incredible emulations directly within Avantis’ input and mix channels with zero latency. No burning FX slots, no 3rd party gear hassles and no issues with latency or phase coherency.

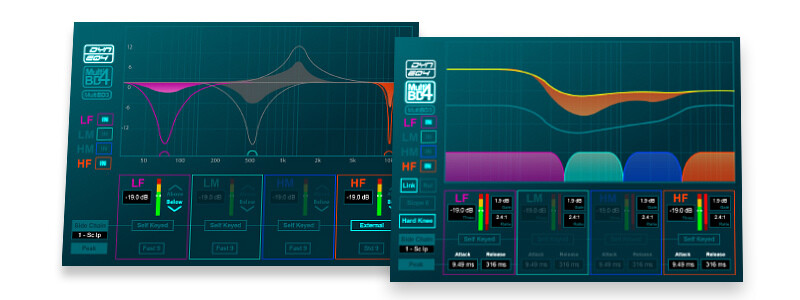

dPACK - DYN8

Avantis dPack also delivers Dyn8, a powerful and sophisticated processor boasting 4 bands of dynamic EQ and 4 bands of multiband compression. With endless applications including taming vocals, tightening sub-groups or adding sonic glue to a mix, Dyn8 changes the way we think about dynamic processing. dPack enables 16 Dyn8 engines for inserting on Input and Mix channels.

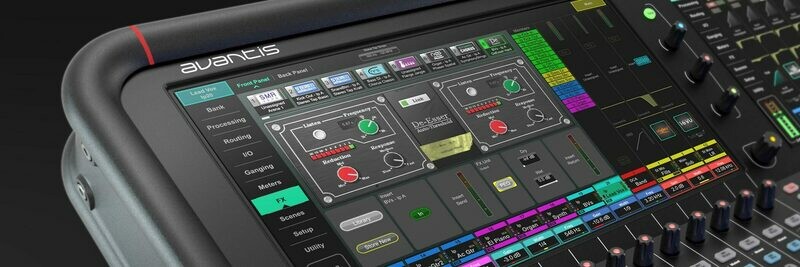

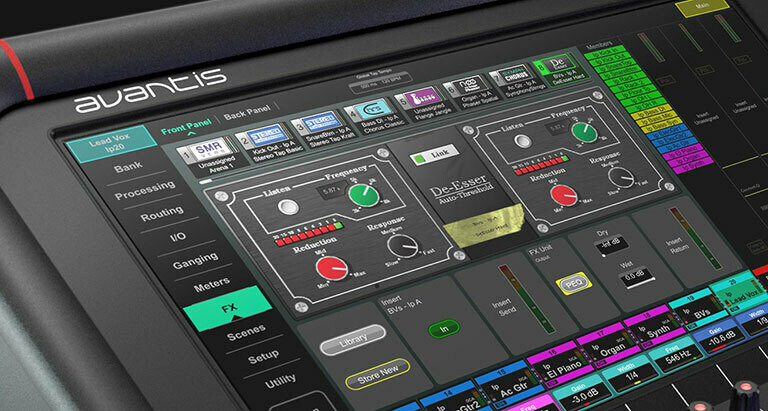

RACKEXTRA FX

12 dedicated fx rack slots. And no compromises.

Trust us, these are not your usual built-in effects.

Allen & Heath has a well-earned reputation for crafting FX emulations that rival the very best third party plug-ins, but with none of the associated hassle.

With a passion bordering on obsession, we’ve created a suite of FX inspired by some of the most revered outboard equipment, including pristine reverbs, detailed delays, and wonderful classic modulation effects.

Best of all, we offer our 12 FX slots with no compromises. Each effect takes up just one of the 12 slots, and each of the 12 FX slots has a dedicated stereo return - so you don’t need to waste your input channels.

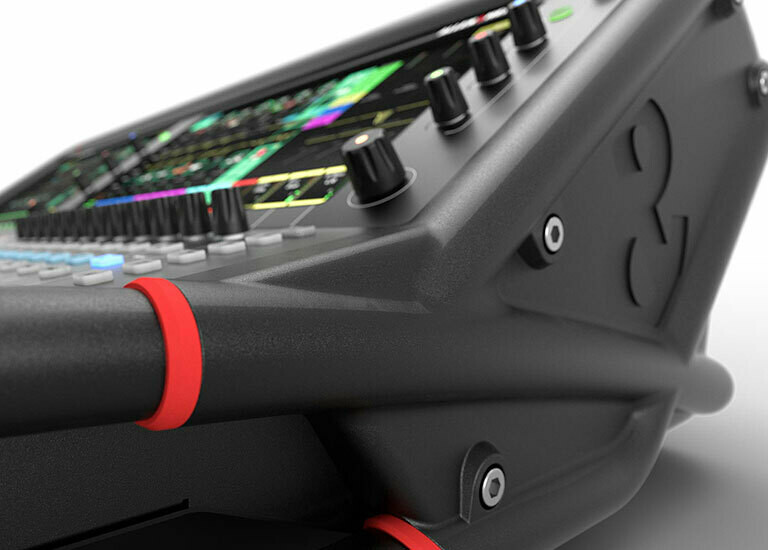

FULL METAL CHASSIS

Lightweight and super-strong.

You’ve probably noticed that Avantis is not just another dull grey box mixer with plastic sides. Part-inspired by the tubular exo skeletons of the latest generation of superbikes, those sleek curves are all metal - super tough - but lightweight.

Because every part of Avantis was designed in pursuit of performance and reliability, we subjected it to some of the most rigorous testing we’ve ever embarked upon. And it took it all.

ONEMIX & MIXPAD APPS

Remote mixing. Personal monitoring.

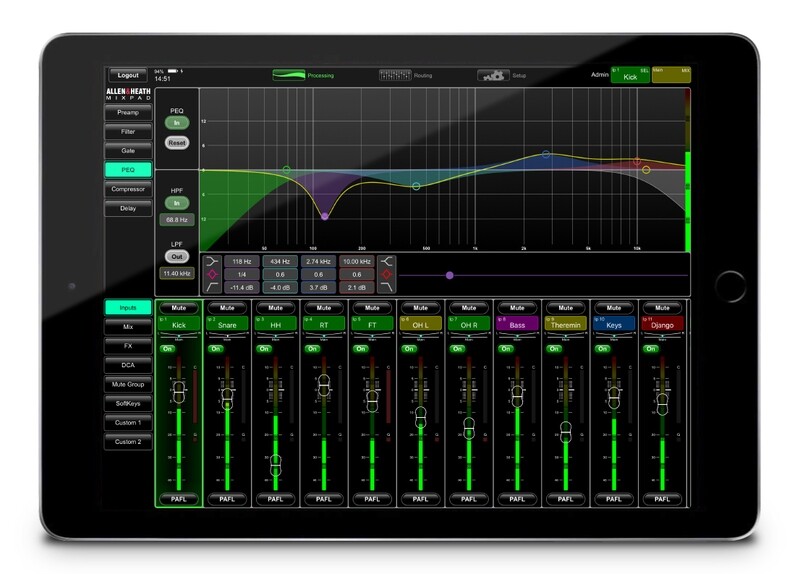

MixPad

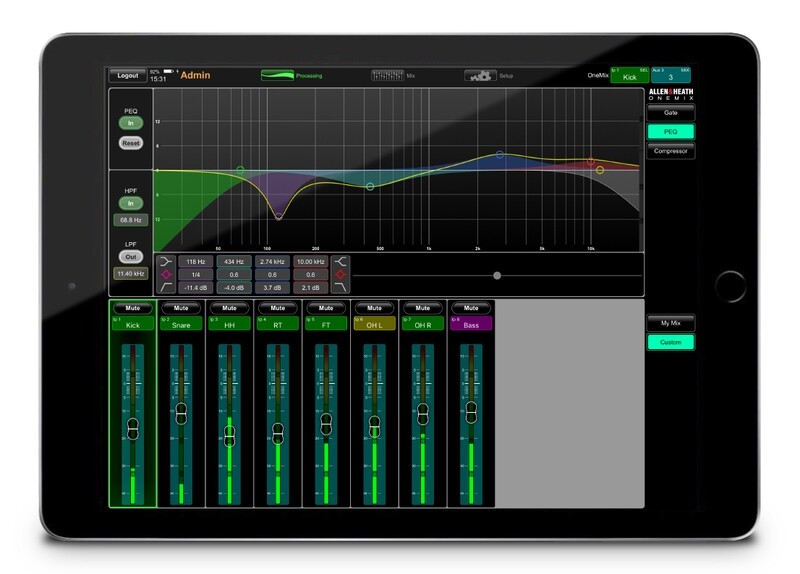

Avantis MixPad is an engineer’s mixing tool providing wireless mobile control for Allen & Heath Avantis digital mixers. It gives you the freedom to walk the room or stage and control the sound right where it is needed. Avantis MixPad and the Avantis mixer can work together to provide simultaneous control of independent functions, for example one engineer using the mixer to mix front-of-house sound, and another using the iPad to mix monitors on stage. Several iPads can be connected, each providing independent control.
